Neglected Quarry Tiles Restored in Shrewsbury

Details below of a red and black Quarry tiled floor at a house belonging to a customer in the Shropshire market town of Shrewsbury, which dates back to medieval times. The owner had recently moved back to the area and purchased the house with the intention of restoring all its original features including the Quarry tiles floor which had several coats of red floor paint and had been covered with carpet for several years, I guess the previous owner wasn’t sure what else to do with it.

Black and Red Quarry Tiled Dining Room Before Cleaning in Shrewsbury

I was also asked to refurbish the Victorian Tiled hallway and porch which was in an equally neglected state.

Victorian Tiled Hallway Before Cleaning in Shrewsbury

Naturally this is exactly the sort of thing we do so I was confident the floor could be significantly improved with our assistance and after popping round to take I look provided a quote although due to other priorities it was a whole year later before I was asked to come and do the job.

Black and Red Quarry Tiled Dining Room Before Cleaning in Shrewsbury

Cleaning a Quarry Tiled Floor

There was cement based building residue, plaster and efflorescence on the floor so I decided to treat the floor with a strong dilution of Tile Doctor Remove and Go which was left to soak into the tiles for a while before being scrubbed in using a rotary machine fitted with a black pad; the resultant slurry was washed away using more water and a wet vacuum.

The whole process was repeated until I was satisfied that any stubborn areas had been dealt with and then the floor given an acid wash with Tile Doctor Grout Clean-up to remove the efflorescence.

Once I was happy with the condition it was given a final rinse to remove any trace of cleaning products and then left to dry for four days.

Sealing a Quarry Floor Sealing

The tiles have to be dry before sealing and after testing the floor with a damp meter I confirmed that four days has been sufficient and the floor was indeed dry. The next step was to apply three coats of Tile Doctor Colour Grow which is an impregnating sealer that occupies the pores in the tile and enhances the natural colour of the tiles in the process.

Black and Red Quarry Tiled Dining Room After Sealing in Shrewsbury

I was able to use the same cleaning and sealing process on both floors and I think you will agree it made quite a difference and both floors have been transformed.

Victorian Tiled Hallway After Cleaning in Shrewsbury



Source: Quarry Tile Renovation and Restoration Service in Shropshire

Restoring a neglected Quarry Tiled Floor in Northamptonshire

This red Quarry tiled floor was in the dining room of a house in the East Northamptonshire market town of Higham Ferrers. Despite being an original feature of the property, the floor had never been taken care of and looked to be completely beyond salvation and what must be the worst condition I have seen in a long time.

Red Quarry Tiles Higham Ferrers Northants Before

When I first inspected the floor it became very quickly clear that it was suffering from severe damp problems, covering roughly two thirds of the entire surface area. I took damp meter readings and discovered that the floor was saturated as there was no damp proof course installed. This problem was compounded by staining from the glue residue used to hold down the linoleum which previously covered the tiles. But while some floors look beyond salvation, I was certain I could restore this one to an acceptable appearance.

A hallway in the property had the same Quarry tiles, but these had been painted with a red tile paint at some point in the past, which itself had worn off in the main traffic areas. These tiles had no damp problems and so it would just be a case of removing the rest of the paint and providing a thorough cleaning before sealing.

Red Quarry Tiles Higham Ferrers Northants Before

The customer was also keen that the dining room be restored as near as possible to the hallway tiles to try and achieve a uniform finish. I did inform the customer that due to the vast difference in condition this would be a challenge but I would do my best. A quote was given and work was booked in at the customer’s convenience.

Cleaning Extremely Dirty Quarry Tiles

Before beginning the restoration, I carried out a patch test to see which products would achieve the best results on the tiles. After vacuuming and mopping the floor to remove the immediate layers of muck, I decided my best course of action would be to use the heavy duty stripper, Tile Doctor Remove & Go.

Working in four separate sections, I applied the product then scrubbed it using a black stripping pad to a rotary machine. Remove & Go is designed to break down old sealers, paints and glues, making it an ideal product for use in this particular situation. This area was then rinsed off with a wet-vac machine and the process was repeated on the rest of the floor.

I then inspected the floor and noticed a few shiny patches where the old sealer hadn’t been fully removed, so I tackled these stubborn areas by hand with a second application of Remove & Go. A final rinse was given to the whole floor to make sure no excess cleaning products remained.

Sealing Quarry Tiles

After completing the cleaning process and removing as much water as possible using a wet vacuum, I installed a dehumidifier and left the tiles to dry for an entire month. Upon my return to the property I took damp meter readings to ensure the tiles were fully dry prior to the application of the sealer. This is crucial as excess moisture can cloud the sealer, rendering it less effective at protecting the stone.

I opted to use Tile Doctor Colour Grow to seal the floor primarily because is fully breathable and therefore ideal for floors that are prone to damp problems. It has the added bonus of being a colour intensifying sealer that really enhanced the natural reddish shades in the Quarry.

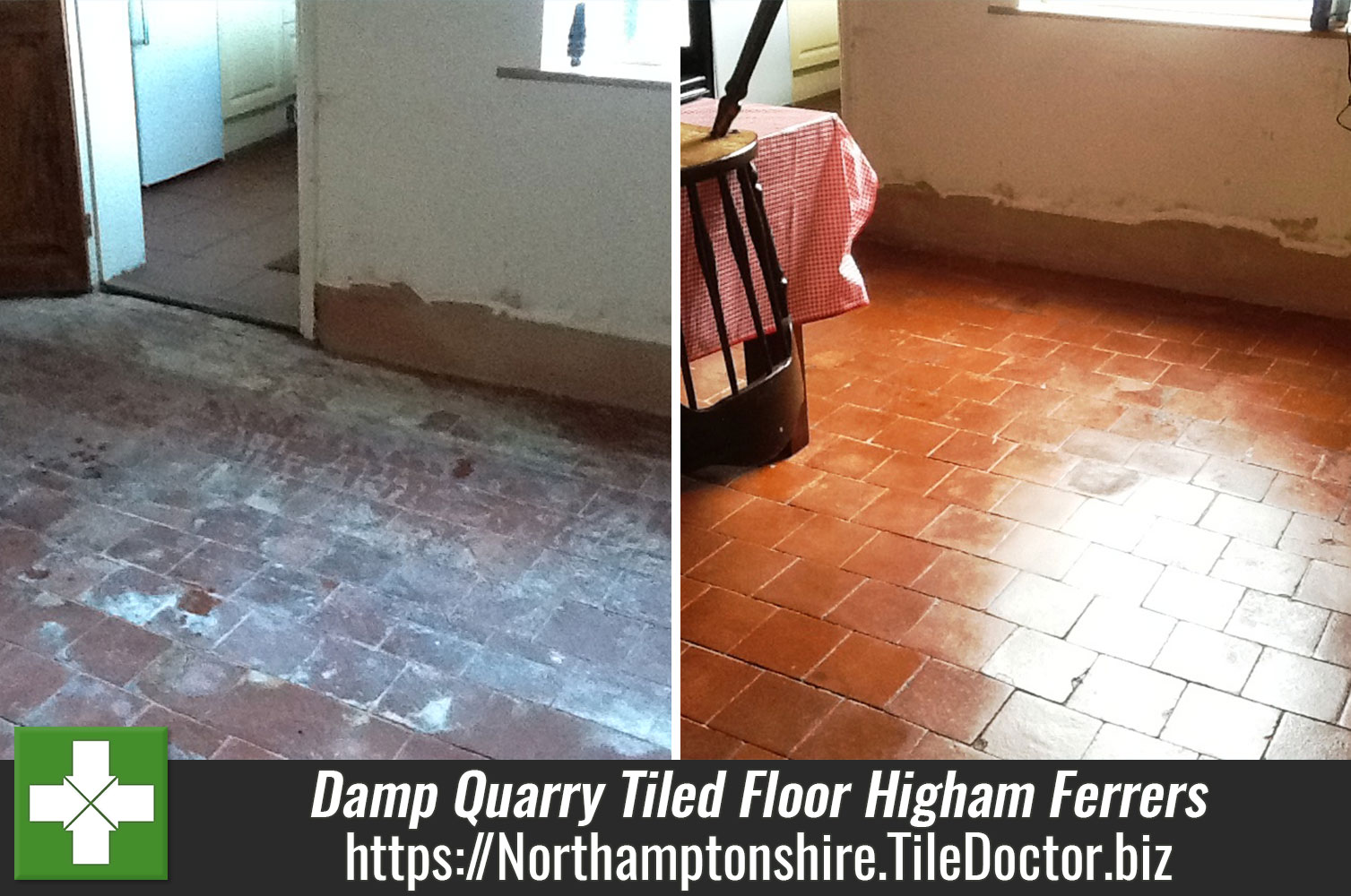

Red Quarry Tiles Higham Ferrers Northants After

As the pictures show, there was a vast improvement in the floor and the customer was pleased with the results. It really goes to show that while a floor might look beyond salvation, wait can in fact be restored to an acceptable condition using the right methods and products. The customer was also given advice on maintenance of this type of floor to keep it looking its best for years to come.

Red Quarry Tiles Higham Ferrers Northants After



Source: Quarry Tile Cleaning and Restoration Service in Northamptonshire
