New Life Breathed Into Old Pub Quarry Tiles

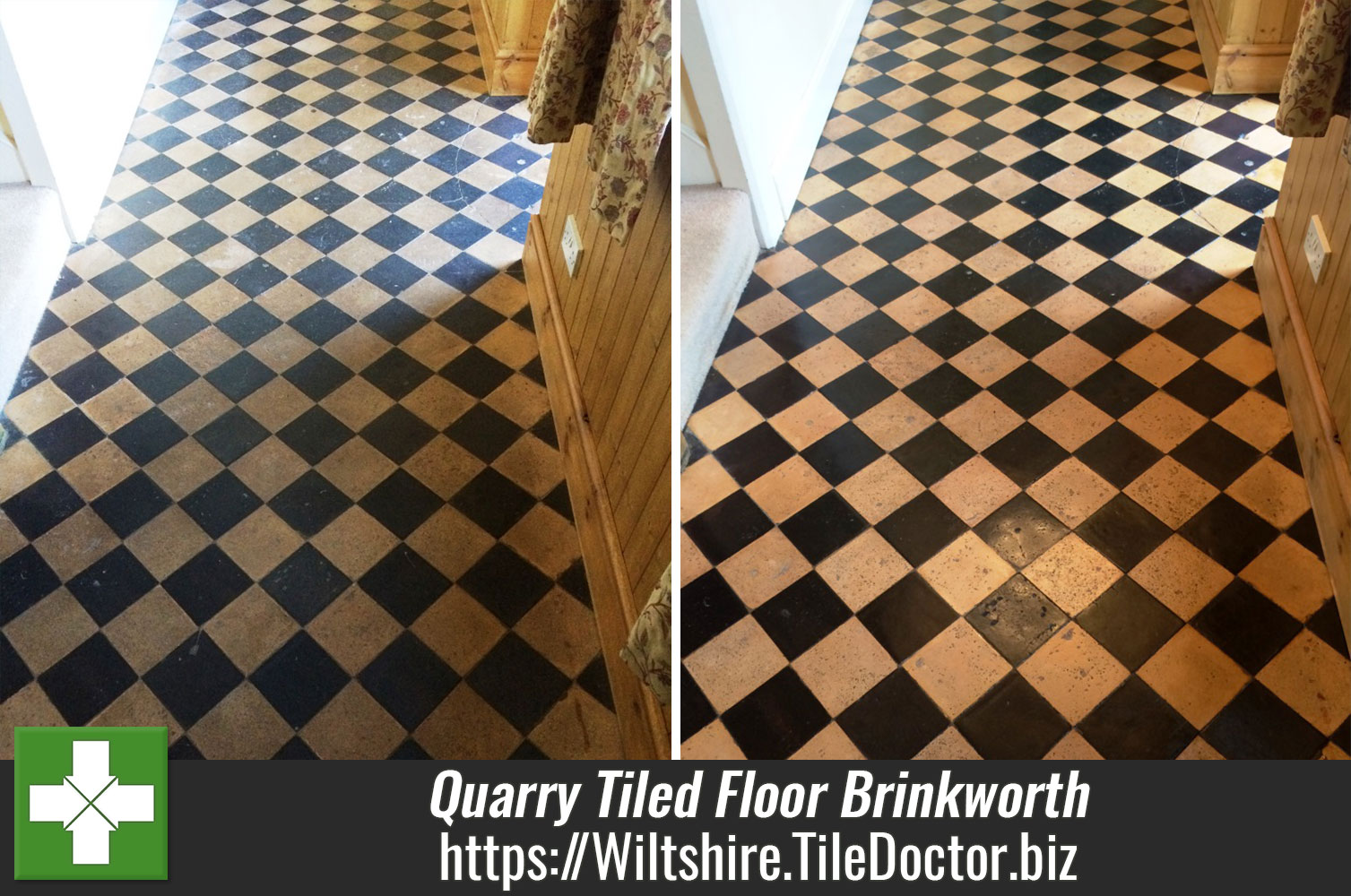

This house in Brinkworth was once a pub so as you can imagine the quarry tiled floor has certainly seen some foot traffic and abuse over the years. The owner contacted us to see if they were able to keep it as a feature entrance hall so we carried out a test which went very well and they booked us to do the work straight away.

Cleaning and Sealing Quarry Tiles in Brinkworth Before

Cleaning Quarry Tiles

Due to the level of ingrained dirt we started by covering the floor in Tile Doctor Remove & Go which is a very strong product usually reserved for removing coatings such as sealers from tile. We let it dwell for 10-15 minutes before working it in with a black scrubbing pad attached to a rotary machine; we scrubbed the area making sure that we covered it thoroughly. At this point It became apparent that there were many pitted areas with ingrained dirt so the process was repeated using a nylon scrub brush attached to the rotary machine to help get into all the pitted tiles. We then went round scraping any adhesives, paint or existing seal with a Stanley scraper.

Once we were happy with the result we then removed the slurry with a wet vacuum and rinsed with cold clean water several times with the aid of a deck brush to make sure ALL trace of cleaning product was removed. This process took most of the day and made a significant improvement to the state of the floor which was still quite damp at this stage so we left for the evening agreeing to come back in three days’ time to give the floor sufficient time to dry.

Cleaning and Sealing Quarry Tiles in Brinkworth Cleaned

Sealing Quarry Tiles

Upon our return we used a damp meter in several areas to check the floor had dried, most sealers won’t take to a damp floor and you can get unexpected results so it’s important to check first. The test results were fine so we started sealing the floor using Tile Doctor Seal and Go which is a water based sealer that doesn’t give off a smell whilst its drying, it also adds a subtle sheen to the tile and enhance the look of the floor as well as protecting the tile from future staining.

Cleaning and Sealing Quarry Tiles in Brinkworth Sealed



Source: Tile, Stone and Grout Problems resolved in Wiltshire

Dealing With Efflorescence Problems

Efflorescence occurs when water rises up through the floor leaving salt deposits on the surface of the tile as it evaporates and can be a problem on old floors where there is no damp proof course. The photographs below of an old Quarry tiled floor at a house in Leicester are a great example of this, fortunately there is a solution and I’ll walk you through this in the story below.

Efflorescence on old Quarry tiles in Leicester

Removing Efflorescence from Quarry Tiles

The first step was to give the tiles and grout a good clean and then strip the floor of any remaining sealer for which I used a dilution of Tile Doctor Remove and Go which was applied to the floor and left to soak in for ten minutes before being scrubbed in with a rotary machine fitted with a black scrubbing pad. The now soiled solution was then removed using a wet vacuum and the floor rinsed with water.

To remove the efflorescence you need to acid wash the floor for which we use Grout Clean-Up which as its name suggests is normally reserved for removing grout smears from tiles however it’s also useful for removing mineral deposits such as the salts from efflorescence and even rust stains. The acid is scrubbed onto the floor just long enough for it to do its job and then quickly removed and the floor given a thorough wash with water, acids can damage a tiled floor if left on for too long so you do need to be careful.

Efflorescence removed from old Quarry tiles in Leicester

Sealing Quarry Tiles

Given there was no DPC the floor was left to dry off for a few days and when we returned it was sealed with several coats of Tile Doctor Colour Grow which gives the matt finish the customer wanted. Colour Grow is a penetrating sealer that provides stain protection by soaking deep into the pores of the Quarry tile and preventing dirt from becoming ingrained there, it also does a good job of enhancing the natural colour of the tile.


Source: Tile, Stone and Grout Problems resolved in Leicestershire

Removing Glue from Quarry Tiles

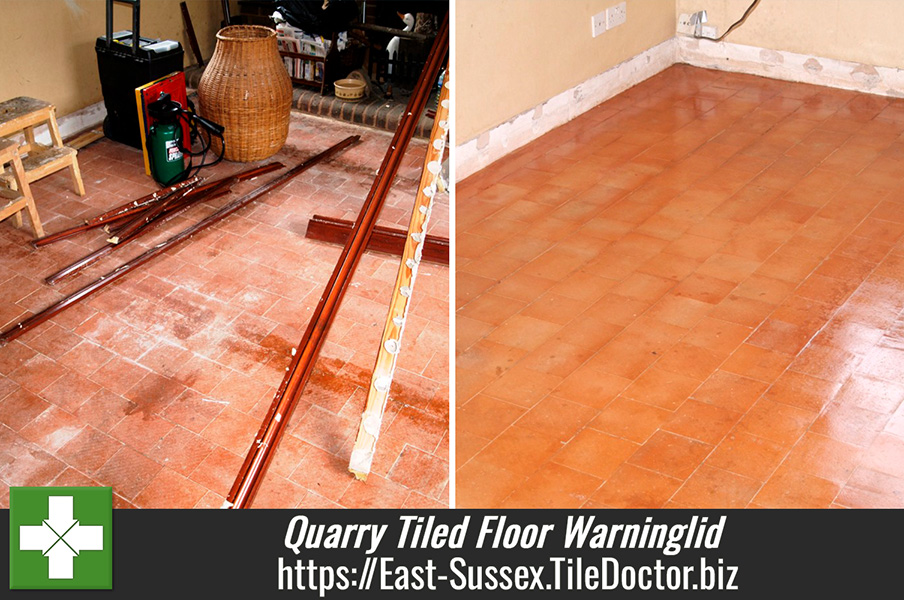

This customer in Warninglid, near Cuckfield asked me to clean a Quarry tiled floor that had been hidden for years under carpet. The carpet had been thoroughly stuck down with glue and sticky gripper rods so the tiles were in quite a mess. Whilst I thought that most of the floor could be greatly improved I voiced my reservations about several patches of heavy glue and some blackened area where burning logs appeared to have rolled from the hearth onto the stone.

Old Quarry Tile Floor Warninglid Before Restoration Old Quarry Tile Floor Warninglid Before Restoration

Deep Cleaning Quarry Tiles

I spent several hours stripping and cleaning the floor using Tile Doctor Pro-Clean first with hand brush then buffer, but struggled to remove the glue around the edges which wouldn’t shift. The solution appeared to be using a hand scrapper and so after a full day of scrapping and rubbing the floor was clean and before I left I gave it a good rinse with water to remove any product. I left it to dry for a couple of days and then the day before I was meant to return to seal the tiles I got a call from the customer who was concerned that the glue marks were more apparent now the floor was dry. I was between jobs so I popped round to have a look and had to agree it seemed there was still evidence of glue on the floor. Something stronger was clearly needed so I spot cleaned with Tile Doctor Remove and Go which is a strong coatings remover that is safe to use on Tile and Stone. Whilst not removing the glue entirely it made a huge improvement and the customer was happy with the result. I washed the impacted areas and used a heat gun to get the tiles dry so I was still able to return the next day to seal them.

Sealing Quarry Tiles

I sealed the Quarry tiles with three coats of Tile Doctor Pro-Seal which adds a subtle finish to the floor and will provide the tiles with long lasting protection. Luckily the next day was quite warm and the room was well ventilated by several windows and a double door so the tiles dried quickly.

Old Quarry Tile Floor Warninglid After Restoration Old Quarry Tile Floor Warninglid After Restoration

As you can see from the photographs on this page, the floor was really transformed and needless to say the customer was very satisfied with the result.


Source: Tile, Stone and Grout Cleaning Service in Sussex

Removing Paint from Quarry Tiles

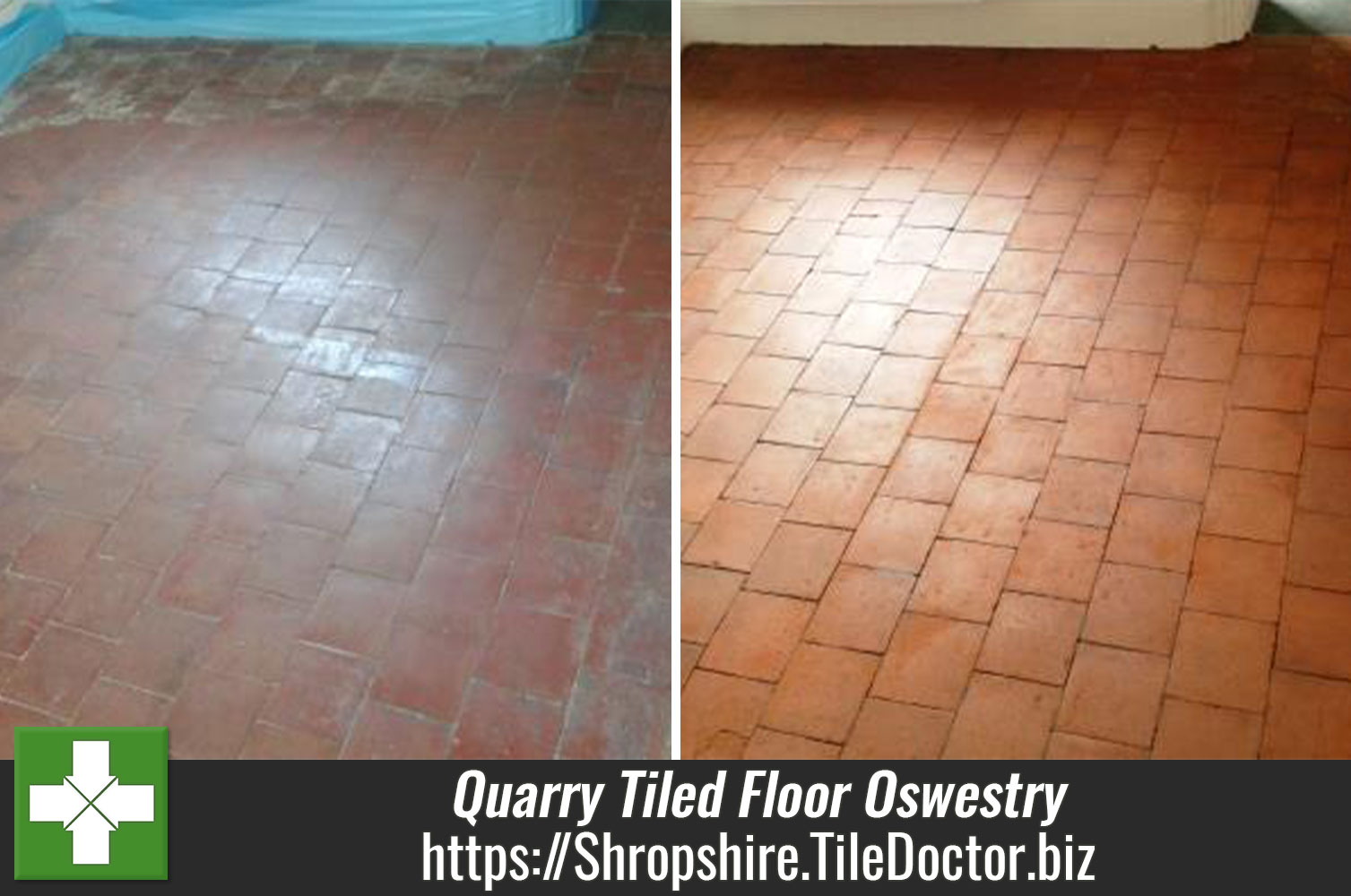

Details below of a Victorian Quarry tiled floor belonging to a customer in Oswestry who had recently moved back to the area and wanted to restore the original features of the house including the Quarry tiles floor which had several coats of red floor paint and was later was covered with carpet for a number of years. The customer described the floor as:

“I have 2 areas of quarry tiles that need a serious make over, in the hall and the back room. There are patches of red paint and areas of mineral deposit and lots of ingrained filth!””

Red Black Quarry Tiles Oswestry Before Red Black Quarry Tiles Oswestry Before

Cleaning a Quarry Tiled Floor

I managed to clean the floor with a strong dilution of Tile Doctor Remove and Go which was left to soak into the tiles for a while before being scrubbed in using a rotary machine fitted with a black pad; the resultant slurry was washed away using more water and a wet vacuum. The whole process was repeated several times as the paint was really stubborn and in places I had to remove the paint removal with a scraper. Once I was happy with the condition it was given a final rinse to remove any cleaning products and then left to dry for five days leaving an air mover with the customer to accelerate drying.

Red Black Quarry Tiles Oswestry After Cleaning Red Black Quarry Tiles Oswestry After Cleaning

Sealing a Quarry Floor Sealing

The tiles have to be dry before sealing and even though I returned five days later the damp meter still indicated that there was moisture in the tiles which I suspect was due to there being no membrane in place under the old Victorian tiles. I agreed with the customer to come back a further week later which proved sufficient and the floor was dry enough to take the sealer.

The customer wanted a matt finish so I sealed the floor with two coats of Tile Doctor Colour Grow which is an impregnating sealer that occupies the pores in the tile and also enhances the colour of the tile.

Red Black Quarry Tiles Oswestry After Sealing Red Black Quarry Tiles Oswestry After Sealing

The customer was out when I applied the sealer but when the she got home she sent me the following message:

“The floor looks brilliant. So much better than I had ever hoped. Thank you.”


Source: Tile, Stone and Grout Cleaning and Sealing in Surrey

Removing Cement and Mortar from Quarry tiles

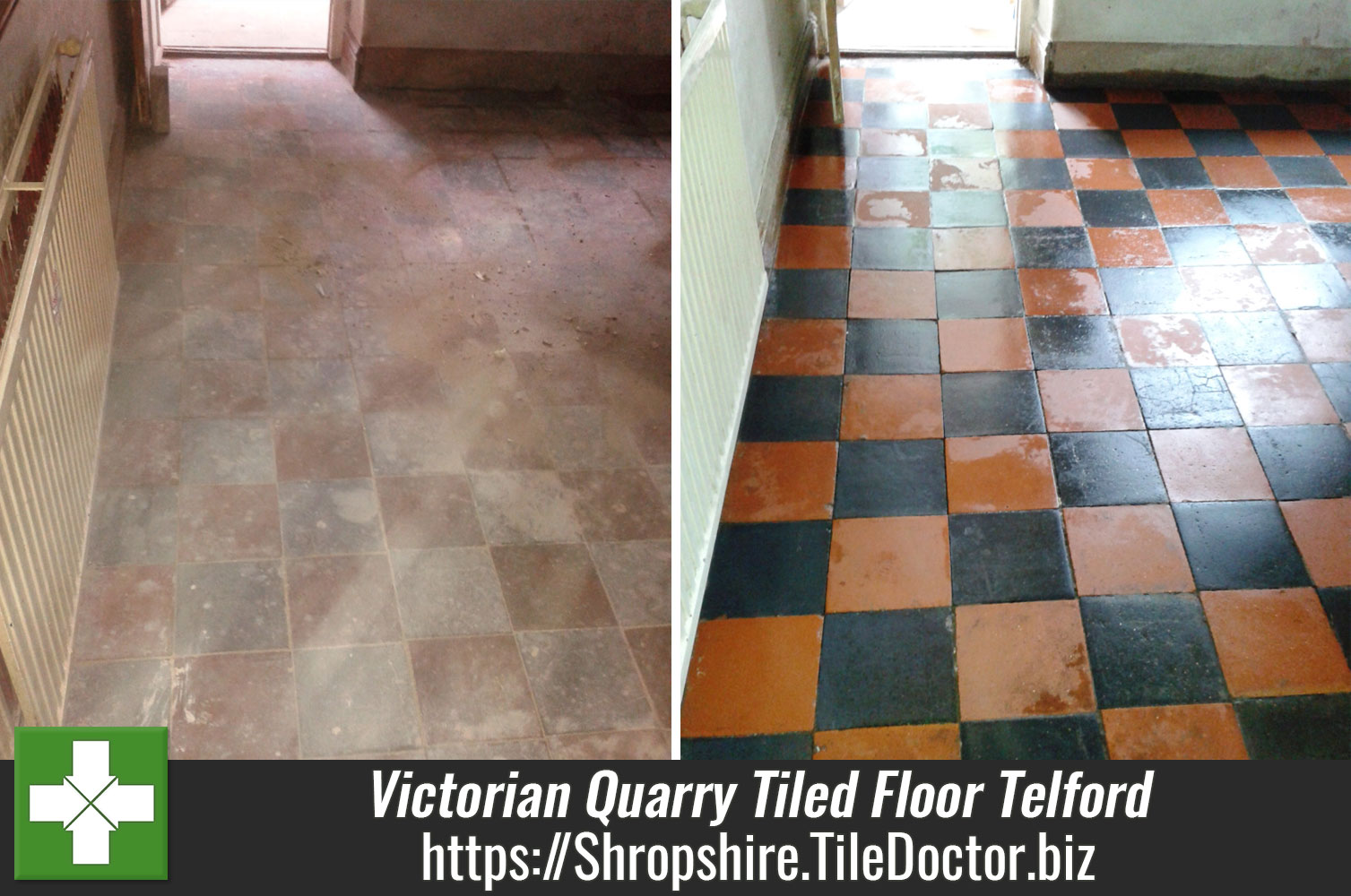

The photographs below of a Red and Black Victorian Quarry tiled floor were taken at a 109 year old cottage in the town of Telford. Unfortunately the tiles were in a really neglected state after the completion of building works but we do like a challenge and agreed to do the work.

Victorian Quarry Tiles Telford before cleaning Victorian Quarry Tiles Telford before cleaning

Cleaning a Quarry Tiled Floor

The whole floor was covered in layers of mortar and plaster so a strong solution of Tile Doctor Remove and Go was applied and scrubbed into the floor using a rotary machine fitted with a black scrubbing pad.

The initial clean revealed a lot more of the mess that had been left over from the builders mixing of mortar and concrete so I decided to try an acid based product called Tile Doctor Grout Clean-Up which is mainly used for the removal of grout from the tile surface but works on other cementitious materials as well. This worked well but required several applications to remove it all and once complete the floor was given a thorough rinse with clean water to ensure it was clear of the resultant slurry and there was no trace of cleaning product. A wet vacuum was used to remove the water from the floor and get it dry so it could be sealed.

Sealing a Quarry Floor Sealing

Once the floor was dry I sealed it using two coats of Tile Doctor Colour Grow which was chosen as the customer wanted a matt finish; Colour Grow also brings out the colours in the tile and it’s an impregnating sealer that occupies the pores in the tile to provide excellent stain protection.

I think you will agree the photographs below shows an amazing transformation that exceeded all expectations.

Victorian Quarry Tiles Telford After cleaning Victorian Quarry Tiles Telford After cleaning

Source: Residential and Commercial Tile and Stone Restoration in Shropshire

Quarry Tiled Floor Hidden Under Ceramic Tiles Restored

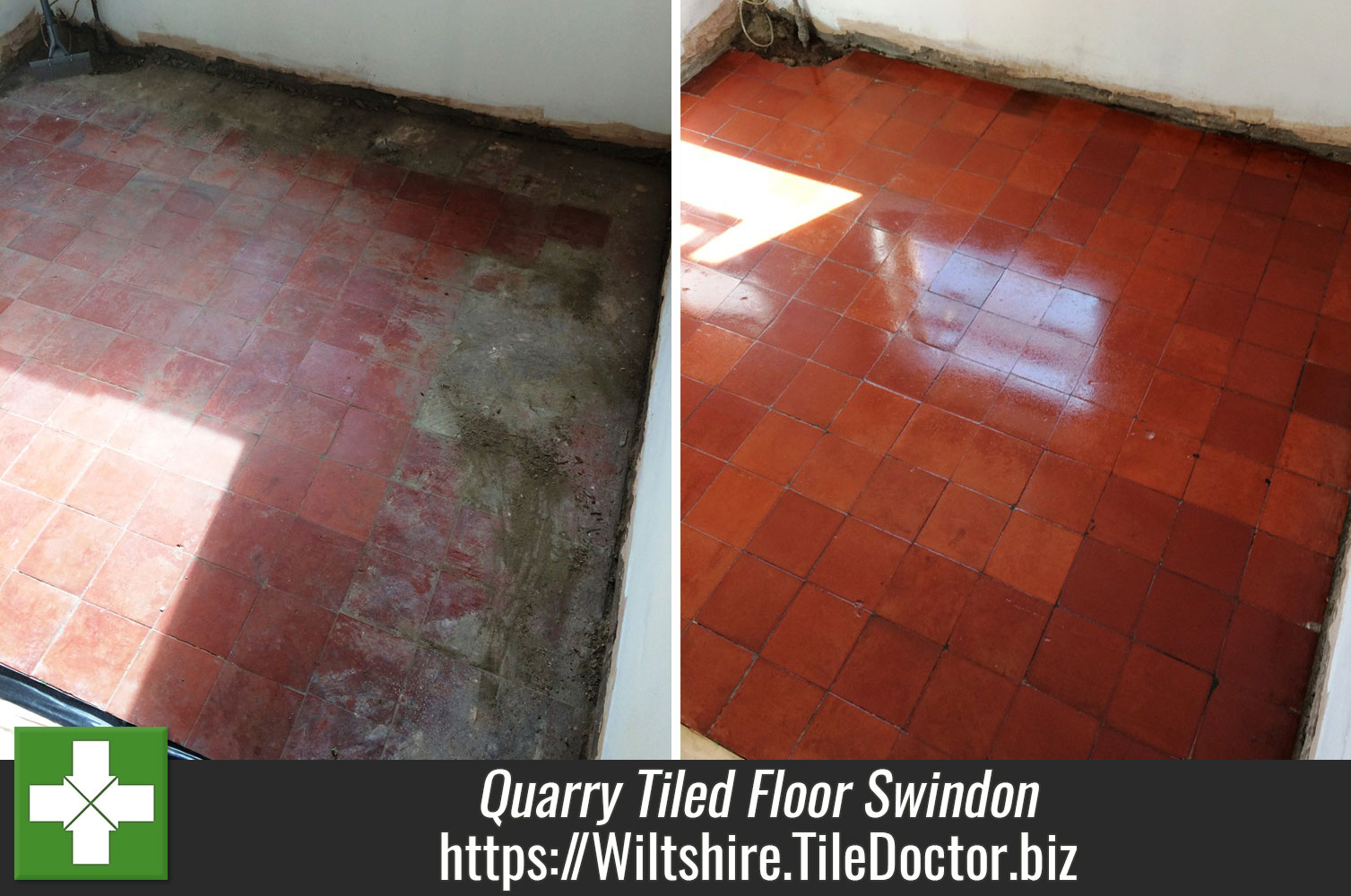

The history of this Quarry Tiled floor at a house in Swindon is a little unusual in that the owner had discovered the Quarry tiles underneath cracked ceramic tiles which had been laid over the top for several years. The customer wanted to bring the Quarry tile back to life to match the existing hallway from the kitchen and so we got a call. Incidentally the practice of laying new tiles on top of old is not unusual as an existing tiled floor provides an ideal level on which to lay new tiles.

Quarry Tiles Swindon Before Cleaning Quarry Tiles Swindon Before Cleaning

Cleaning Quarry Tiles

We started by using a floor scraper to scrape off as much tile adhesive as possible. Once this was done we mixed a strong dilution of Tile Doctor Grout Clean-Up and brushed it all over the remaining tile adhesive and used a black scrubbing pad attached to a rotary machine to remove the glue. This took several attempts using more Grout Clean-up, a floor scraper and a black scrubbing pad to remove all traces of the adhesive. Next we rinsed off any trace of product using clean water and then removed it using a wet vacuum.

The floor was free of glue at this point but we still needed to remove any existing sealer from the tiles and give them a deep clean to remove ingrained dirt so a strong solution of Tile Doctor Pro-clean mixed 50/50 with Nanotech Ultraclean was applied to the tiles and left to dwell for twenty minutes. (The Nanotech product adds tiny abrasive particles to the mix making a more effective cleaner). The solution was worked into the tile using a black pad attached to a rotary machine and the floor thoroughly scrubbed. Once satisfied the tiles were rinsed with clean water several times to remove any trace of cleaning product and the water removed using a wet vacuum. A lot of work had gone into the floor at this point and it needed time to dry before sealing so we left for the evening.

Sealing Quarry Tiles

We returned two days later and after testing the tiles were dry using a damp tester, which came back as OK, we processed to seal the Quarry tiles using six coats of Tile Doctor Seal and Go which is an ideal sealer for Quarry tiles as it adds a nice sheen to the floor as well as providing future surface protection. Seal and Go is also water based so there’s no smell as it dries.

Quarry Tiles Swindon After Cleaning Quarry Tiles Swindon After Cleaning

Source: Residential and Commercial Tile, Stone and Grout Restoration in Wiltshire

Removing Varnish from Quarry Tiles

We were asked to take a look at these Quarry Tiles at a house in the Lancashire town of Formby near Liverpool. The tiles had been sealed with varnish but a polyurethane sealer like Varnish which forms a thin coat on the surface of the tile is easily scratched as you can see in the photograph below:

Varnished Quarry Tiles Cleaning Formby Before

Cleaning Quarry Tiles

To resolve the problem we had to strip off the Varnish coating from the Quarry tile using Tile Doctor Remove and Go which is especially designed for the safe removal of coatings from tile and stone. The product is diluted and spread over the floor allowing it to soak into the tile for around fifteen minutes before being scrubbed into the tile using a rotary floor scrubbing machine fitted with a black pad. The soiled solution is then washed off with clean water and extracted from the floor using a wet vacuum. There were some stubborn areas and these were tackled by repeating the process but this time with the addition of a steamer.

A stiff brush was also used in the grout lines and when we were completely satisfied with the condition of the floor it was given an thorough rinse using cold water. The wet vacuum was used again to remove the water and get the floor as dry as possible.

Varnished Quarry Tiles Cleaning Formby After Cleaning

Sealing Quarry Tiles

The floor was left to dry overnight and we came back the next day to seal the floor using four coats of Tile Doctor Seal and Go which will protect it going forward and it also adds a nice shine to the tile.

Varnished Quarry Tiles Cleaning Formby After Sealing



Source: Residential and Commercial Tile Cleaning Services in Lancashire

Removing a Sealer From Kitchen Quarry Tiles

I recently paid a free home survey visit to a home owner in the village of Sherston near Malmesbury where the sealer on her Quarry Tiled Floor had started to fail in places and was becoming difficult to keep clean. Whilst I was there I did a sample clean and after reviewing the results she was happy to book us in for the job.

Quarry Tiles in Sherston Before Cleaining

Cleaning Quarry Tiles

To clean the Tiles and strip off the remaining sealer we used a strong dilution of Tile Doctor Pro-clean mixed 50/50 with Nanotech Ultraclean, the Nanotech product adds tiny abrasive particles to the mix making it a more effective cleaning product. This was left to dwell on the floor for twenty minutes before being worked into the tile using and black buffer pad fitted to a rotary buffing machine. The whole area was cleaned in this manner along with a stiff hand brush to get into the grout lines and a wet vacuum which was used to suck up the dirty residue before the floor was rinsed down with cold water.

Once the floor had started to dry it had become apparent that there was still some seal left behind. To resolve this problem I used Tile Doctor Remove and Go which is a powerful coatings remover product. It was left to dwell on the Quarry tiles for ten minutes before being scrubbed in with both a deck brush and black pad. I was still having problems removing all the seal so I then used a steamer with Remove and Go and a stiff deck brush to remove the last of the evident seal. The floor was then thoroughly rinsed the floor several times with clean water to remove any product build up and the ware removed using the wet vacuum.

Sealing Quarry Tiles

The floor was left to dry for a couple of days and then I returned to seal the floor first testing it was dry with a damp meter. The floor was fully dry we applied multiple coats of Tile Doctor Seal and Go which will protect the floor from stains going forward making it easier to clean and also adds a nice shine to the tile.

Quarry Tiles in Sherston After Cleaining
Before leaving I advised the customer on the use of a Neutral tile cleaner to help prolong the life of the sealer, there are a number of acidic floor cleaning products available which should not be used with stone or sealed floors as the acid will eat into the sealer over time reducing its life.

Source: Residential and Commercial Tile Cleaning Services in Wiltshire

Careful Cleaning of Quarry tiles around a swimming pool

Photographs below of a job we did cleaning and sealing the Quarry Tiles surrounding a residential indoor swimming pool floor tiles at a grand residence in Cambridge. As you can see from the photograph below the Quarry tiles and Grout was looking rather washed out and given their proximity to the pool extra care was needed to be ensure we didn’t contaminate the pool with dirty water from the cleaning process or chemicals, fortunately all our equipment is electrically isolated so that was not a problem.

Quarry Tiled Pool Surround Cambridge Before Cleaning Quarry Tiled Pool Surround Cambridge Before Cleaning

Swimming Pool Tile Cleaning

Fortunately the pool was fitted with a cover so we made a start cleaning the tiles using a strong dilution of Tile Doctor Pro-Clean mixed 50/50 with NanoTech Ultra Clean which add tiny abrasive particles into the cleaning solution making it more effective. Working in sections the solution was left to soak into the tile and grout before being worked into the floor using a rotary machine fitted with a scrubbing pad running at slow speed to reduce splashing. This process removed any remaining sealer and cleaned the tile and grout up nicely, we used clean water to rinse the floor and a wet vacuum to remove the soiled solution making sure not to drain any solutions into the pool and re-treating any stubborn areas. This process was fairly tedious and took up much of the day but the results were well worth the effort.

Quarry Tiled Pool Surround Cambridge After Cleaning Quarry Tiled Pool Surround Cambridge After Cleaning

Sealing Quarry Tiles around a Pool

The tiles were left to dry off overnight and we came back the next day to seal the floor using two coats of Tile Doctor Colour Grow which is an impregnating sealer that fills up the pores in a tile to protect it from stains whilst enhancing its natural colours.

Quarry Tiled Pool Surround Cambridge During Sealing

The process worked well and you can see the difference in the photographs above however the tricky nature of the environment meant it took longer than usual to complete but the main thing was the customer was happy with the result.

Quarry Tiled Pool Surround Cambridge After Sealing Quarry Tiled Pool Surround Cambridge After Sealing



Source: Quarry Tiled Pool Surround Cleaned and Sealed in Cambridge

Deep Cleaning Grubby Quarry tiles

This Quarry Tiled Kitchen floor had been laid in 2000 which is relatively recent compared to some of the floors I’m asked to deal with, the tiles are 150 x 150 mm Quarry tiles with a mixture of colours. A customer in Cardiff said that the Quarry tiles has been sealed by the tiler however it wasn’t long after it was completed that the before became very grubby looking. You can see this for yourself in the photograph below where you should be able to make out the ingrained dirt and discoloured tile grout.

Grubby Quarry Tiled Kitchen Floor Cardiff Before Cleaning

Cleaning Quarry Tiles

I set about cleaning the floor with undiluted Tile Doctor Remove and Go mixed 3 to 1 with NanoTech UltraClean which adds tiny abrasive particles to a strong coatings remove; this mixture not only removes any previous sealers but also deep cleans the tiles and brings the grout back to its original colour. I used a rotary machine with a disc shaped scrubbing brush attachment disc which really gets into the dirt. The soiled solution was removed using a wet vacuum, stubborn areas retreated and then the floor was rinsed until all the cleaning solution had been removed.

Grubby Quarry Tiled Kitchen Floor Cardiff During Cleaning

Sealing a Quarry Floor Sealing

The floor was left to dry for 24 hours and I came back later to seal it. Before sealing I used a hand held damp meter to verify the floor had dried. I had previously discussed the choice of sealer with the customer to establish how they wanted the floor to look and selected Tile Doctor Seal and Go for its satin shine.

Grubby Quarry Tiled Kitchen Floor Cardiff During Sealing

I went on to seal the tiles with two coats of Tile Doctor Seal and Go using a water test to verify I had applied the right amount of sealer and that liquids were being repelled from the surface of the tile as opposed being absorbed.

Grubby Quarry Tiled Kitchen Floor Cardiff After Cleaning and Sealing

The floor cleaned up really well especially after sealing which brought the colours in the tile back to life; the customers were delighted with the results.


Source: Residential and Commercial Tile Cleaning in South Wales

Removing Plaster from Quarry tiles

This floor was another case of builders failing to protect the Quarry Tiled Floor when they were working at this house in Bedford, this is certainly not un-typical of plasters considering the number of messy floors we have had to clean up previously. I guess in some ways we shouldn’t complain as they are keeping us busy but it was my floor I would be quite upset.

Deep Cleaning Quarry Tiles

To get rid of the plaster I applied a solution of Tile Doctor Grout Clean-up which is an acid based product designed to remove grout from the surface of tiles but works equally well on cement, plaster and other mineral deposits such as effloresce and rust. Working in sections the Grout Clean-up was applied, scrubbed in and then washed off, being an acid it’s not advised to leave it on the tile for too long.

Once the plaster was dealt with the whole floor including the tiles and grout was given a good clean using Tile Doctor Pro-Clean which is a strong alkaline product that’s safe to use on Tile, Stone and Grout. For best results leave it to soak into the tile for twenty minutes before giving the tiles a good scrub.

Once the tiles were clean the floor was given a good rinse with clean water to remove any remaining chemical and neutralise the floor before sealing; a wet vacuum was used to remove as much water from the floor as possible so it could dry faster.

Deep Cleaning Quarry Tiles in Bedford Before Deep Cleaning Quarry Tiles in Bedford After

Sealing Quarry Tiles

We left the floor to dry overnight and came back the next day to seal it using four coats of Tile Doctor Seal and Go sealer which adds a nice sheen to the floor as well as providing long term stain protection. The photographs above show the transformation of the floor and certainly the customer was very happy with the result.


Source: Residential and Commercial Tile Cleaning in Bedfordshire

Restoring old Quarry tiles in Bedford

This was a very straightforward request to clean and seal an old Quarry tiled floor that dated back to the Victorian era. The tiles didn’t appear to have any sealer or other treatment applied, it could be if there was anything it had worn off a long time before.

Cleaning Old Quarry Tiles

A strong dilution of Tile Doctor Pro-Clean was applied to the floor and left to soak into the tile for around twenty minutes before being worked into the floor using a rotary floor scrubber fitted with a black pad. Pro-Clean is a strong alkaline product so unlike acid based cleaners it’s safe to use on any tile and stone which given the age of these tiles was quite an important consideration.

Pro-Clean was also used along the grout lines which were scrubbed by hand using a stiff brush. The floor was then rinsed with clean water which was removed using a wet vacuum and the whole process repeated until we were happy that the tile and grout was clean.

This process took most of the day and before we left the floor was given a thorough rinse with clean water to remove any trace of Pro-Clean as this can upset sealing later on.

Victorian Quarry Tiles Bedford before cleaning Victorian Quarry Tiles Bedford after cleaning and sealing

Sealing Quarry Tiles

The floor was left to dry overnight and when we came back the next day we were able to start the sealing process. For sealing a combination of sealers was used starting with a single coat of Tile Doctor Colour Grow; Colour Grow is a impregnating sealer that fills the pores in the tile in order to repel any contaminates that can stain the floor, it also as its name suggests brings out the colour in the tile. Once this had dried a coat of Tile Doctor Seal and Go was applied which is a topical sealer that adds a nice sheen to the floor. This proved to be a great combination and the quarry tiles looked really nice when they were finished in fact the customer was so surprised by the result we had managed to achieve.


Source: Residential and Commercial Quarry Tile Cleaning in Bedfordshire

Quarry Tile Cleaning in Cumbria

A customer from Kendal (famous for its Kendal Mintcake) called me in to look at their Quarry Tiled Utility floor, which was looking very dirty and stained. On inspection the sealer had broken down and was no longer protecting the tile resulting in dirt getting ingrained into the pores of the tile resulting in discolouration. We agreed what short of finish was required and the customer booked me in to do the work.

Quarry Tile Cleaning Kendal Before

Cleaning Quarry Floor Tiles

My first job was to protect the surrounding areas from splashes so on my arrival I covered the wooden floor in the hallway before starting to remove the old sealer with Tile Doctor Remove and Go, I sprayed it on working in small areas leaving it to dwell for a while before scrubbing it in with a stiff brush making sure I scrubbed it in well before removing the soiled solution with a wet vacuum. I scrubbed all the grout joints at this point to make sure they were all clean and then washed the floor down to remove any chemical and neutralise the floor. It was a relatively small floor so I left it to dry and returned a few house later to seal it.

Quarry Tile Sealing Kendal

Sealing Quarry Floor Tiles

On my return I used a damp tester to make sure the floor was dry, which it was, so I sealed it with two coats of Tile Doctor Colour Grow which is a as well as protecting the floor brings the natural colours out in the tile. Naturally if the damp tester had showed that it was damp I would not have sealed the floor that day as the sealer would not have taken properly.

Quarry Tile Cleaning Kendal After

This job took me one day as it was only a very small floor and I was able to seal it in the same day the customer were happy with the result I went through the maintenance program and explained how to clean the floor.


Source: Quarry Tile Cleaning Service in Cumbria
