Old Quarry Tiled Farmhouse Kitchen Floor Rejuvenated in Devon

Rackenford is a tiny village in North Devon, with a population of approximately 400 people, and is surrounded by many farms as agriculture is the main source of employment in the area.

I recently visited one of the farmhouses in the area at the request of the property owner who needed help restoring an area of Victorian quarry tiles which were around one hundred and twenty years old. The floor had been extended with a new batch of tiles which ran into a later extension about ten years prior. Both areas were dirty and attracting grime and the older tiles had some heavy damage to some tiles and had lost the colour which was indicative of being covered by carpet for a long period and salts had dried in to the tiles, damaging them and creating an orange peel type of surface.

In the past, the floor had been sealed with a topical sealer i.e. one that sits on top of the tile rather than being absorbed into it. In most areas, the sealer had long since worn off but in a few areas that it remained it had been scratched by the chairs near the large inglenook fire at one end of the room.

The customer was looking to clean and re-seal the whole floor to try to improve the look of the damaged tiles but also to make the floor easier to keep clean and maintain and were hoping that the divide between old and new tiles was less striking.

Old Quarry Tiled Farmhouse Floor Rackenford Before Cleaning

Cleaning a Dirty Quarry Tiled Kitchen Floor

When it comes to cleaning natural stone tiles, our go-to cleaning product is Tile Doctor Pro Clean. Pro Clean is a multi-purpose, high alkaline cleaner that serves to both strip away any old and ineffectual sealer, and clean heavily soiled stone. The product is suitable for use on all types of natural stone and tiled floors.

I mixed a strong dilution of Pro Clean and water before spreading it liberally across the whole floor. I then left it to dwell for roughly 10 minutes before proceeding to agitate it with a scrubbing brush fitted to a heavy rotary machine. This helped to eradicate the soil build-up. Any resulting cleaning slurry was promptly removed using a wet vacuum, before the floor was left to dry completely overnight.

Sealing a Quarry Tiled Kitchen Floor

Returning to the property the next day, I immediately ran some damp tests to see if there was any excess moisture present on the floor. Knowing that this was an old property, I expected that there would be no damp proof membrane installed and this would increase the chances of damp issues.

Thankfully, the floor proved to be completely dry and I was able to seal the floor using eight coats of Tile Doctor Seal and Go. Seal and Go is a water-based acrylic polymer sealer that provides both a stain resistant surface seal and a durable, aesthetically pleasing low-sheen finish that helped to return the natural reddish colours to the Quarry tiles. Although the top layer of the damaged tiles had been lost the colour had returned and were now looking much healthier.

With a fresh seal in place, the floor will now be much easier to clean and maintain. The customer was really pleased with the outcome of the restoration, which you can see in the photos below. Another satisfied customer!

Old Quarry Tiled Farmhouse Floor Rackenford After Cleaning

Although nothing can really replicate a hundred years of patina, the difference between the old and new tiles was reduced with a good clean and a consistent finish throughout. Certainly, the customer was happy and left the following feedback:

We are very pleased with this refurbishment of old quarry tiles, which have regained colour and texture. The overall slight gloss added to both these and the newer tiles next to them makes a huge difference to the whole picture. The cleaning and maintenance guide is also very useful. The bill was also very reasonable for two intensive days work – many thanks

Old Quarry Tiled Farmhouse Floor Rackenford After Cleaning Panorama

Source: Quarry Tile Cleaning and Restoration in Devon

Refurbishing Old Hallway Quarry Tiles in Hertfordshire

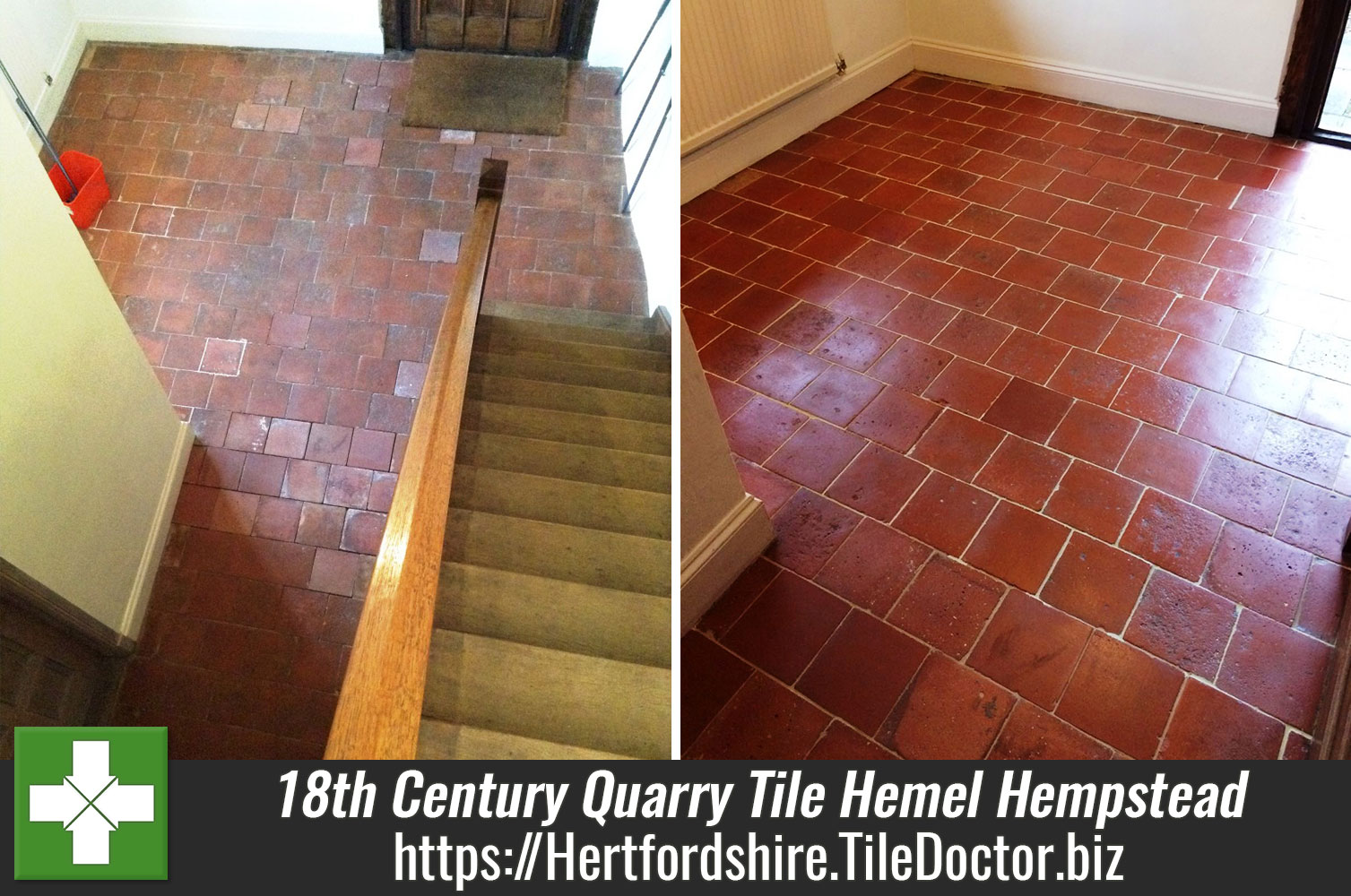

The photographs below are of a very old Quarry Tiled hallway floor taken at a beautiful 18th century farmhouse near Hemel Hempstead; the floor was believed to be original and the customer wanted it repaired and restored.

Old Quarry Tiles Before Cleaning Hemel Hempstead Farmhouse

Deep Cleaning 18th Century Quarry Tiles

Before starting the cleaning process we made sure to protect any vulnerable areas such as the oak panelling on the staircase and then set about repairing the broken tiles which were replaced with matching reclaimed quarry tiles.

Old Quarry Tiles Before Cleaning Hemel Hempstead Farmhouse

Once the replacements and new grout had set we made a start on deep cleaning the Quarry tiles and removing remaining old stubborn waxes and polishes by applying Tile Doctor Remove & Go combined 50:50 with Tile Doctor Nano-Clean which combine to form a very effective stripper and cleaner. The solution was left to soak into the tile for a good ten minutes before being scrubbed in with detail brushes and scrubbing pads fitted to a rotary machine.

The resulting soiled solution was rinsed off with water and extracted using a wet vacuum which allowed us to see the underlying condition of the tiles which indicated more work was required especially to the grout. To get the grout looking cleaner it was treated with a strong dilution of Tile Doctor Pro-Clean which was then scrubbed into the grout manually using a stiff grout brush; the soiled cleaning solution was then rinsed off and extracted using a wet vacuum and then the whole floor was given a further rinse and also a steam clean to remove any trace of product.

Old Quarry Tiles During Cleaning Hemel Hempstead Farmhouse Old Quarry Tiles During Cleaning Hemel Hempstead Farmhouse

Sealing 18th Century Quarry Tiles

It’s essential that tiles are bone dry before sealing so we left the floor to dry for a full seven days before returning. To get the best out of the floor I decided to seal the floor with two different but compatible sealers; first a single coat of Tile Doctor Colour Grow was applied which is an impregnating sealer that restores colour to the tile and protects it from stains by occupying the pores in the clay.

Once the Colour Grow had dried it was followed with six coats of Tile Doctor Seal and Go Extra which is a special acrylic based formula that promotes moisture vapour transmission which is essential for these old floors where no damp proof course was installed.

Old Quarry Tiles After Cleaning Hemel Hempstead Farmhouse

I’m pleased to say the restoration went very well and as you can see the quarry tiled hallway floor now looks fantastic.

Old Quarry Tiles After Cleaning Hemel Hempstead Farmhouse

Source: Quarry Tile and Grout Cleaning and Restoration Service in Hertfordshire

Old Farmhouse Kitchen Quarry and Flagstone Cleaned in Worcester

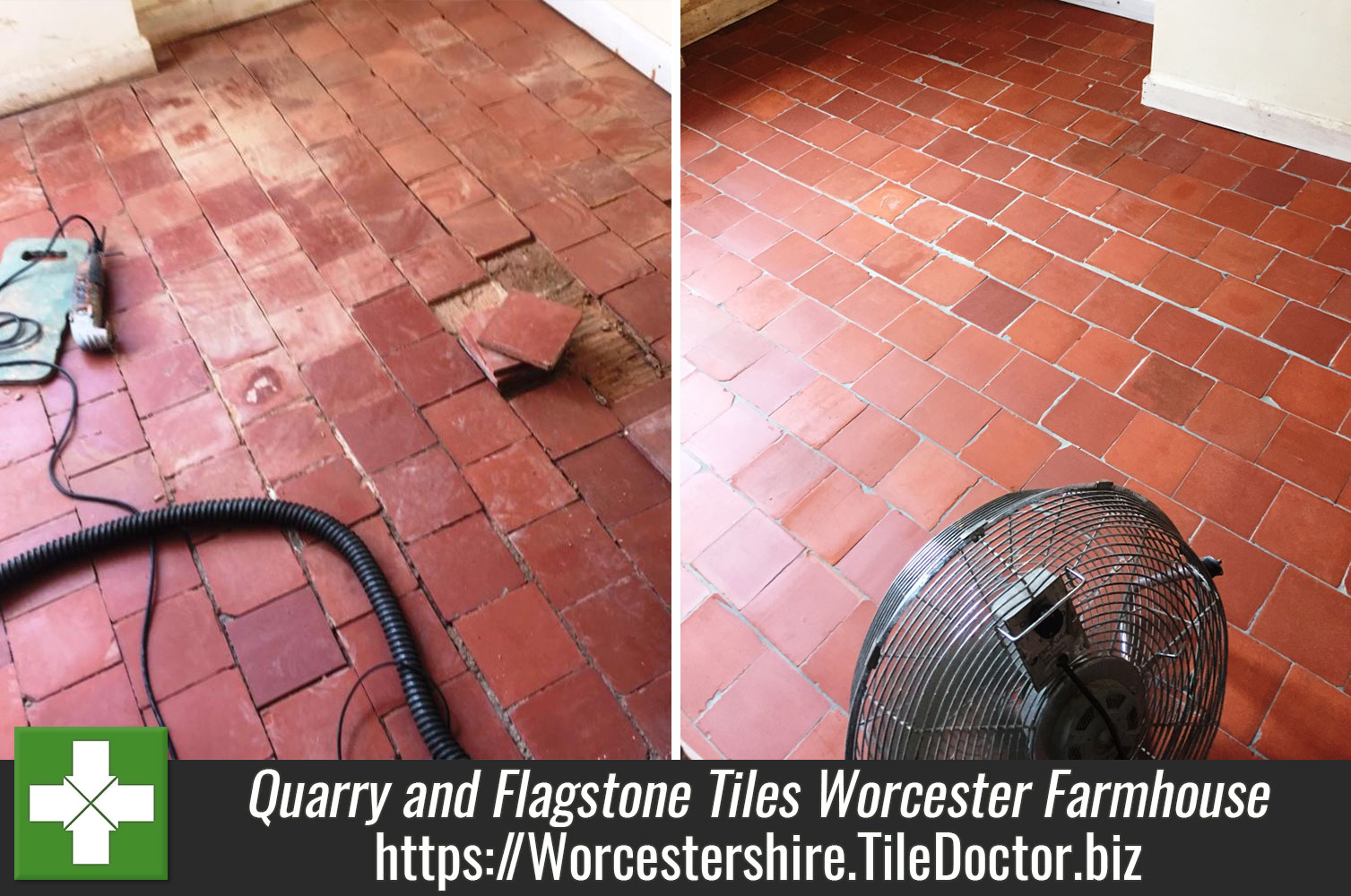

This restoration of two different types of tiled floor took place in the kitchen of a farm property in Worcester which had been in same family for generations. The floor was made up of Quarry tiles, some of which were damaged and Flagstones both of which were in true need of a deep clean and seal.

Cleaning Quarry and Flagstone Tiles

Before I could start cleaning the Quarry floor, we needed to carefully remove and any broken tiles and install suitable replacements including a large damaged flagstone.

Quarry Tiles Refurbishment Worcestershire Farm Flagstones Replacement Worcestershire Farm

I wanted everything to match as closely as possible so I also opted to grind out the old grout and replace with fresh grout in a light grey.

The whole area was then deep cleaned with a black scrubbing pad and Tile Doctor Pro-Clean to remove ingrained dirt, the soiled cleaning solution removed with a wet vacuum and then the floor was treated to an acid wash with Tile Doctor Acid Gel. Acid Gel is a blend of phosphoric and hydrochloric acids in gel form which can remove grout smears and efflorescence from salts on the tiles.

Sealing Quarry and Flagstone Tiles

After leaving the floor to dry completely overnight, I returned to the property to seal both sets of tiles with three coats of Tile Doctor Seal and Go Extra. This sealer is very breathable allowing moisture vapour to rise up through the tile and ideal for situations where no damp proof membrane has been installed which is especially relevant in older properties such as this one.

Quarry Tiles Refurbishment Worcestershire Farm Flagstones Replacement Worcestershire Farm

The customer was very pleased with the results. The positive influence of a deep clean and seal on both the Quarry and Flagstone tiles is very clear in the photos. Another satisfied customer.
Source: Tile and Grout Cleaning and Restoration Service in Worcestershire
