Renovating a Quarry Tiles Hidden under Vinyl in Gloucestershire

Posted on by

This client who lives in Filton had been informed by the previous owner of his property that there was a Quarry tiled floor in the Kitchen but it had been covered up with stone effect Vinyl flooring. Keen to have it removed and have the original Quarry tiles brought back to life we were contacted to see if it could be done.

I visited the property to survey the floor and work out a plan for the restoration. The lino was heavily stuck in place with about 5mm of adhesive so I could see this was going to be no easy restoration. It would be necessary to remove, the floor, adhesive compound and cement beneath it.

Lino Covered Quarry Tiled Kitchen Floor Before Restoration in Filton Lino Covered Quarry Tiled Kitchen Floor Before Restoration in Filton

I discussed the project with the client the project, explaining it was difficult to ascertain how long it would take but anticipated it would be around three days. The process would involve stripping off the Vinyl tiles, removing the adhesive, deep cleaning the Quarry tiles and the apply a sealer to protect them. The client agreed my quote and we arranged a convenient date to return to make a start.

Stripping Stone Effect Vinyl from a Quarry Tiled Kitchen Floor

After removing the kickboards from underneath, the kitchen units, and taping up the surrounding areas to protect them, I set about restoring the floor. I used a variety of different methods to remove the adhesive compound and cement but mainly hand tools and hard labour! After three long days we had managed to remove the Vinyl and one once all adhesive was removed it was starting to look like a Quarry tiled floor. It was actually quite rewarding to see the Quarry tiles emerge as we progressed.

Lino Covered Quarry Tiled Kitchen Floor During Restoration in Filton Lino Covered Quarry Tiled Kitchen Floor During Restoration in Filton

Once the Quarry tiled floor was fully exposed, I applied Tile Doctor Acid Gel which was worked in using a large buffing machine fitted with a black scrubbing pad. The soil was rinsed off with water and the waste extracted with a wet vacuum. I repeated this procedure until I was satisfied the floor was as clear of old adhesives and residue and as clean as possible. Actually, we had uncovered a really nice-looking floor, which considering the covering was generally in good condition. The floor was left for a few days to ensure it was totally dry, ready for the sealing process.

Sealing a Quarry Tiled Kitchen Floor

We used a lot of water during the cleaning process, so I left the floor to try out for two days before returning to apply the sealer. I had chosen to use Tile Doctor Colour Grow for the sealer; it leaves a matt finish whilst intensifying the natural colours in the tile. It works by occupying the pores in the tile thus preventing dirt from becoming trapped resulting in durable protection. It also allows the surface to breathe which is important on a floor of this age. We applied 2 coats to the tiles allowing each to dry before applying the next, the lovely colours of the floor were now enhanced.

Lino Covered Quarry Tiled Kitchen Floor After Restoration in Filton Lino Covered Quarry Tiled Kitchen Floor After Restoration in Filton

Our client was amazed at the results and so happy they were finally rid of the old lino which was passed its best. For aftercare I recommended they should use Tile Doctor Neutral Tile Cleaner which is designed for cleaning sealed tile and stone.



Source: Quarry Tile Restoration Service in Filton, Gloucester

Removing Levelling Screed from Quarry Tiles in Old Marston, Oxford

Posted on by

I received a call from this client in Old Marston around two miles north east of the centre of Oxford. They had lifted a lino floor in their kitchen and found an old Quarry Tiled floor underneath and decided to see if they could have it restored.

Quarry Tiled Kitchen Floor Before Restoration Old Marston

I went over to survey the floor and could see that the tiles had been covered with a thin layer of levelling screed to ensure the lino didn’t sink into the recesses. I ran some tests to demonstrate how the screed could be removed which worked well and it was apparent that the tiles underneath were intact and could be renovated. I submitted a quotation for removing all the screed, deep cleaning the Quarry tiles and then sealing the tiles to protect them. The client was really pleased that we could restore the floor and the quote was accepted, with a date booked to do the work.

Removing Screed and Cleaning Kitchen Quarry Tiles

To start the work, I applied undiluted Tile Doctor Grout Clean-up worked in with a small carbide brush attached to a hand-held rotary buffer. The combination of the acid in the Tile Doctor Grout Clean-up combined with the scrubbing action of the brush were effective at removing most of the screed. The small bits of remaining screed were carefully removed by hand, using a floor scraper. The floor was then rinsed with water and the soil removed with a wet vacuum.

For the second phase of the cleaning process I applied Tile Doctor Oxy-Gel which was scrubbed into the floor with a stiff brush rinsing after with water and the soil extracted again using the wet vacuum. After cleaning the floor to remove the dirt I could still see some evidence of the screed on the tiles, so I decided to give the floor an Acid Wash using Tile Doctor Acid Gel which was scrubbed into the floor and rinsed off as before. Tile Doctor Acid Gel is of course an acidic product so once it was removed, I decided to rinse the floor with Tile Doctor Neutral Cleaner to neutralise the pH levels in the floor. The wet vacuum was used again to remove as much moisture from the Quarry tiles as possible before leaving the now clean floor to dry off fully overnight.

Sealing a Quarry Tiled Kitchen Floor

I returned to seal this floor the next day. First, I checked the floor was fully dry with the damp meter, it was within the recommended range, so I was ready to complete the sealing process.

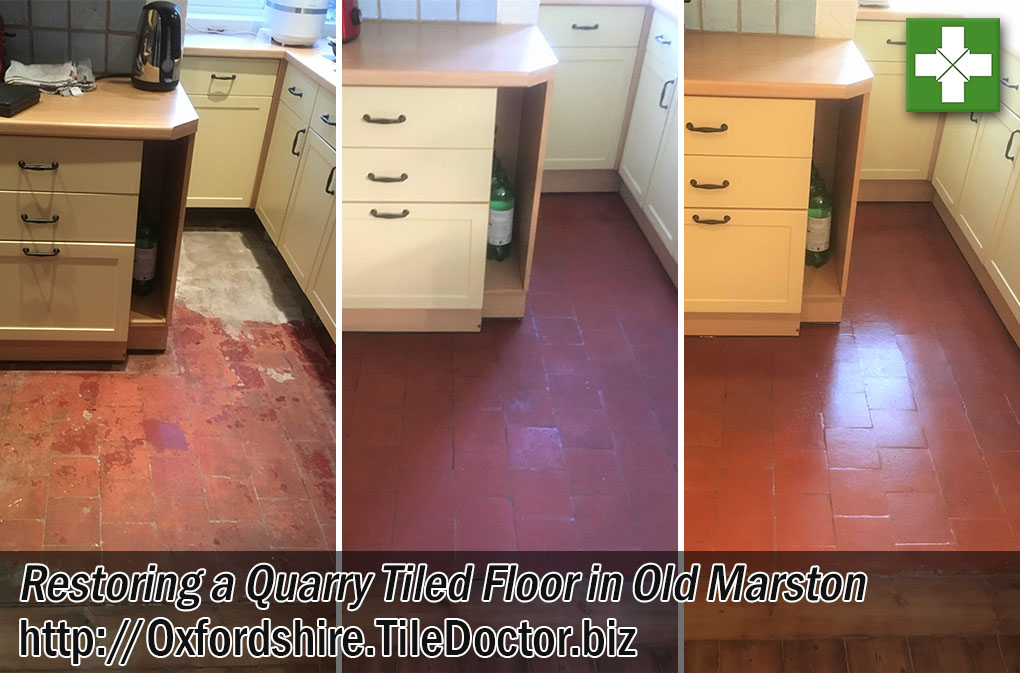

Quarry Tiled Kitchen Floor After Restoration Matt Sealer Old Marston

The client was not too sure if they wanted a matt or sheen finish, so I first put a coat of Tile Doctor Colour Grow on the floor to show them the matt finish. Colour Grow is an impregnating sealer that enhances natural colour and protects from within by occupying the pores in the tile. After reviewing the floor, they decided it was not for them, so I followed up by applying several coats of Tile Doctor Seal & Go which adds a nice sheen finish and is compatible with Colour Grow.

The combination of sealers worked very well together, and they were very satisfied with the final result and of course that we had been able to restore the Quarry tiles.

Quarry Tiled Kitchen Floor After Restoration Gloss Sealer Old Marston



Source: Quarry Tile Cleaning and Restoration Service in Old Marston Oxford

Cleaning Stained Quarry Tiles in Hitchin

Posted on by

Details below of a small Quarry Tiled floor we deep cleaned which included a lobby and adjacent toilet. The property was located in Hitchin which is a market town in North Hertfordshire it is notable for St. Mary’s Church, which is remarkably large for a town of its size.

Quarry Tiled Entrance Lobby Restoration Hitchin Before Cleaning

The tiles were in good physical condition, but were looking a little tired, they just needed a good clean and seal. Also, if you look closely at the photographs you will see the grout was stained with the remains of some red paint which needed to be removed.

Quarry Tiled Entrance Lobby Restoration Hitchin Before Cleaning Showing Paint Staining

They had tried some household solutions but had not managed to remove the marks and the floor had lost its’ sheen. We discussed the process, agreed a price and I arranged a date to return and carry out the work.

Quarry Tiled Entrance Lobby Restoration Hitchin Before Cleaning

On our return our first task was to prepare the areas with protective tape to threshold edges surrounding the floor, adjacent doors and anywhere that we didn’t want our solutions to touch.

The paint stains were spot treated using a strong dilution of Tile Doctor Remove and Go which was scrubbed into the grout by hand. This is a multi-purpose stripper made with a long dwell-time to remove most coatings and sealers, but particularly good on paints. It is also the perfect product to draw out ingrained stains and remove any heavy grease build-up.

Then the tiles and grout were cleaned using Tile Doctor Pro-Clean, this one is a concentrated, multi-purpose high-alkaline cleaner, stripper and degreaser. Dependent on the needs of the tiles we dilute it to suit. We usually dilute with 3 to 5 parts water to use as a very effective cleaner that removes grease, from areas that have been neglected or subjected to heavy use. Alternatively, and as in this situation, we diluted with 2 parts water to strip the synthetic and acrylic waxes that had built up on the floor over the years.

The entrance and porch were then wet vacuumed, and the water rinsed, then allowed to dry off overnight ahead of the sealing process the following day.

Sealing a Quarry Tiled Hallway Floor

On returning to the property the following day, I used a moisture meter to ensure the floor was completely dry and ready for the next stage. Once satisfied I started to apply a single coat of Tile Doctor Colour Grow this is an impregnating sealer which is applied to protect the tiles and offers a durable surface whilst enhancing their natural colour. Finally, to complete, this was followed by three coats of Seal and Go to add a lasting protective seal and a low sheen durable finish.

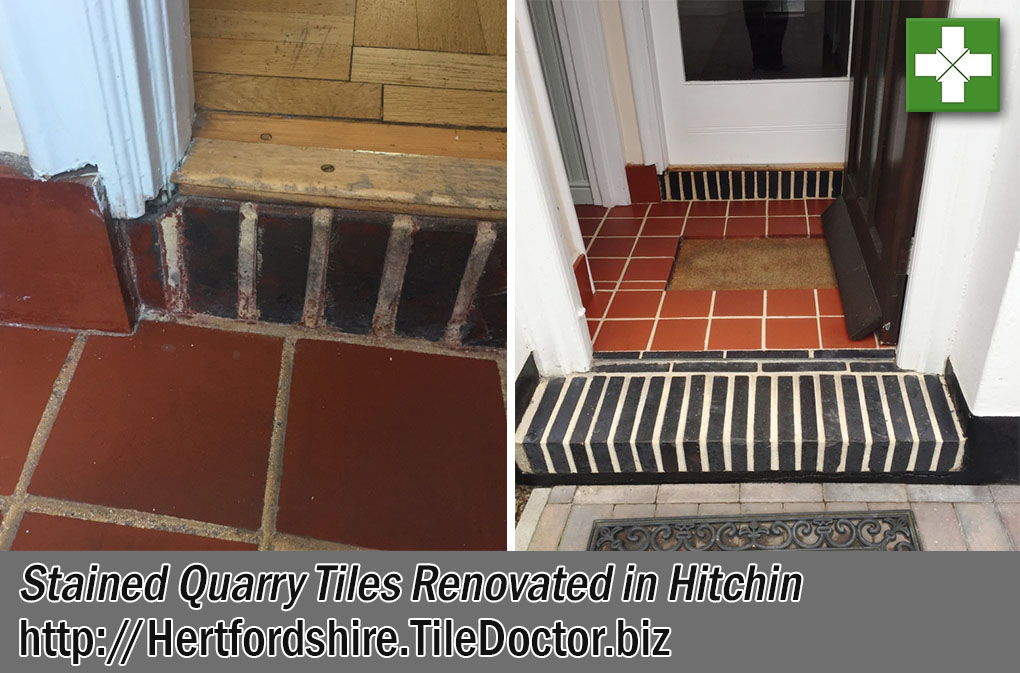

Quarry Tiled Entrance Lobby Restoration Hitchin After Cleaning

The client was very happy with the completed floor, it had brightened up the whole area, particularly the downstairs cloakroom. She was also pleased it was now going to be easier to maintain and keep clean and she had finally got rid of the offending red paint!

Quarry Tiled Entrance Lobby Restoration Hitchin After Cleaning



Source: Quarry Tile Cleaning and Renovation Service in Hitchin, Hertfordshire

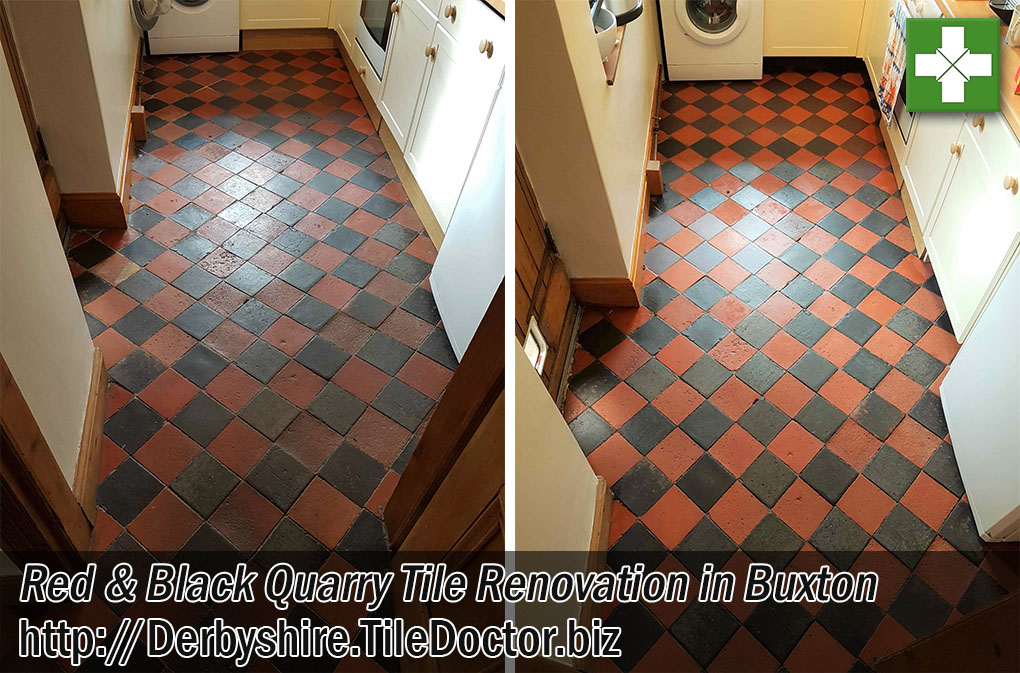

Improving the Red & Black Colour of a Quarry Tiled floor in Buxton, Derbyshire

Posted on by

The photographs below are from a client who lives in an older property in Buxton which you may have heard of due to its famous spa and popular spring water. Buxton is situated in the county of Derbyshire, in the East Midlands and has the highest elevation of any market town in England.

The property had Red and Black Quarry tiles laid throughout the Kitchen and the downstairs in a diamond pattern. Quarry tiles are very hard wearing and thus a popular and traditional flooring option for high traffic areas in the past. Certainly, in this case they were in good physical condition given their age and they looked very much in-keeping with the period property along with the fireplaces.

Red Black Quarry Tiled Floor Before Cleaning Buxton

The client loved the feature floor but felt the tiles were looking neglected and they were struggling to keep them clean. This is a common problem with quarry tiles which are porous and need to be sealed to keep them looking good, however over time the sealer wears down with use and dirt becomes ingrained in the pores of the tile making them impossible to clean effectively. The client just wanted them to look clean and ensure they could be easily maintained.

Red Black Quarry Tiled Floor Before Cleaning Buxton

I recommended deep cleaning the tiles to remove the dirt and the sealing them to protect them going forward a process which usually takes around two days.

Cleaning and Restoring Quarry tiles

My quote was accepted, and I returned on the agreed date to complete the work starting with the first part of the process which involved removing the ingrained dirt, grime and any remaining sealer that may be present on the floor. To do this I applied a strong dilution of Tile Doctor Pro-Clean and left it to dwell for ten minutes. The Pro-Clean was then worked into the tile and grout using a black buffing pad fitted to a rotary machine. Once done the now soiled cleaning solution was rinsed off the floor with water and a wet vacuum was used to extract it from the floor. Some areas of tile were stained with paint slashes from decorating and these was spot treated with Tile Doctor Nanotech HBU which stands for Heavy Build-Up remover and is pretty good at dealing with all sorts of stains and tough soiling on tiled floors. The floor was then dried using the wet vacuum and left overnight to allow it to dry out thoroughly.

Sealing Quarry Floor Tiles

The client had left the radiators on overnight to aid the drying process and by the next morning the floor was nice and dry. I tested the moisture content to be sure and it was well within acceptable levels and therefore ready for the next stage. It’s important to ensure the tiles are dry before applying a sealer as the sealant won’t cure and the result will be compromised.

I sealed the floor a couple of coats of Tile Doctor Colour Grow sealer. I chose this product because the house had some damp problems due to its’ age and I decided a breathable fully sealer was the best option for this situation as this will allow moisture to rise-up through the tile and evaporate without causing any problems. Colour Grow works by soaking into the pores of the tile protecting it from within and improving the natural colours of the tile in the process.

Red Black Quarry Tiled Floor After Cleaning Buxton

The end result was the floor looked much cleaner and colours in the tiles were more vibrant, needless to say my client was very pleased with the result and the sealer will ensure the floor is easy to maintain floor for the future as per their brief.

Red Black Quarry Tiled Floor After Cleaning Buxton



Source: Quarry Tile Cleaning and Sealing Service in Buxton, Derbyshire

100 Year Old Quarry Tiled Kitchen Floor Restored in Nuneaton, Warwickshire

Posted on by

I took the photographs below at an old 1920’s house in Nuneaton where the owner was interested in restoring the original Quarry tiled floor in their Kitchen. Interestingly Nuneaton has a rich manufacturing history that included brick and tile making so it’s entirely possible these tiles were made locally at the Haunchwood Brick and Tile company.

Tastes change over the years and at some point in the past the Quarry tiles had been covered with a levelling compound so that linoleum could be installed on top. This meant that the first part of the job would be to remove the screed before I could clean up the tiles. On top of that It was clear as well that many of the tiles were damaged and would need replacing.

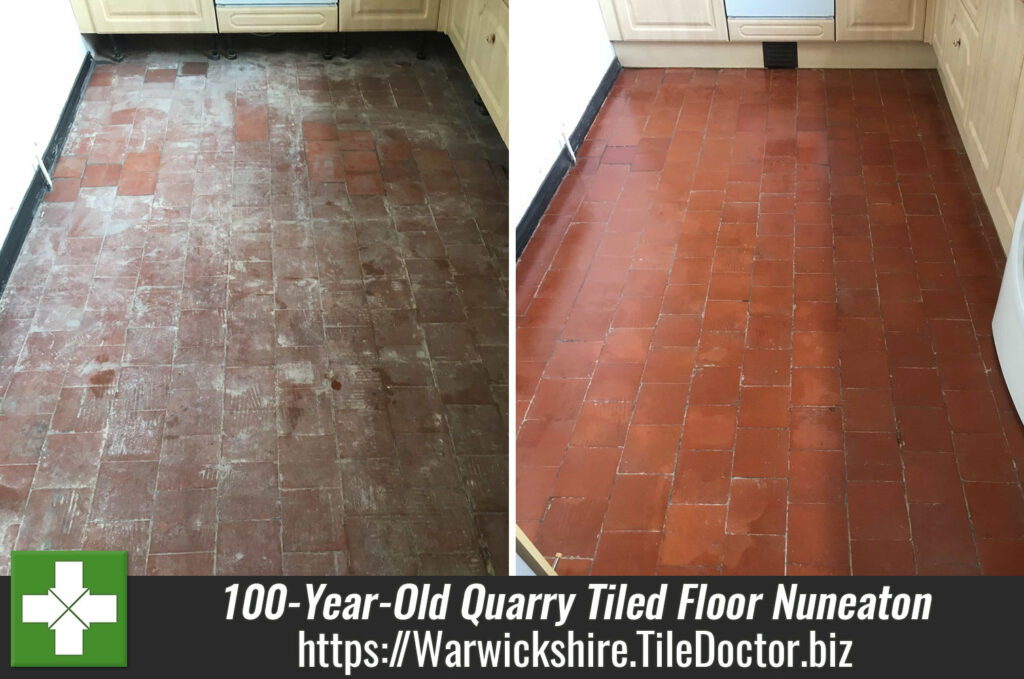

Quarry Tiled Floor Before Restoration Nuneaton

I worked out a quote which was agreed by the customer and started looking around for matching replacement tiles, fortunately I was able to track some down at Warwick Reclamation who stock thousands of quarry tiles in many of the common period sizes.

Restoring an Original Quarry Tiled Kitchen Floor

On day one I set about carefully removing the screed with a hammer and chisel and also the damaged tiles, so they could be replaced. With the tiles removed we it was clear some parts of the subfloor were cracked and needed to be rebuild with fresh cement.

Quarry Tiled Floor During Restoration Nuneaton Quarry Tiled Floor During Restoration Nuneaton

Once the floor was ready the replacement Quarry tiles were fixed in place and once the adhesive was dry they were grouted in.

To remove the remaining screed and salt damage from the surface of the tiles I used a set of coarse milling pads which are applied with water for lubrication. The process generates a lot of soil, so the floor needs to be rinsed with water and the soil extracted with a wet vacuum after each pad.

The next step was to pre-treat the tiles with Tile Doctor Remove and Go in order to remove old contaminants such as old oils and then treat the floor to a deep clean with Tile Doctor Pro-Clean which was scrubbed in with black scrubbing pad.

Old floors like these don’t have a damp proof membrane so the last step in the restoration process was to counter any inherent salt issues in the floor that might reappear later as white efflorescence salt deposits. This is done by giving the floor an acid rinse using Tile Doctor Grout Clean-up which is scrubbed into the tiles, neutralising the salts, this product also removes old mineral deposits and grout smears.

The floor was given a final rinse with water to remove any traces of products used and then as much water and moisture as possible was extracted using a wet vacuum. The floor was then left to dry out for a few days.

Sealing a Quarry tiled floor

When I returned my first job was to take multiple readings around the floor using a damp meter to verify the floor was dry and ready for sealing. The extra drying time had done the trick and I was able to seal the floor using multiple coats of Tile Doctor Seal and Go Extra which is a fully breathable sealer that can cope with any potential moisture problems, it also leaves a nice sheen finish that brings the best out of Quarry tiles.

Quarry Tiled Floor During Restoration Nuneaton Quarry Tiled Floor During Restoration Nuneaton

In total the restoration took 4 days to complete and had completely restored the Quarry tiled floor close to what they must have looked like back when they were installed nearly a hundred years ago.


Source: Quarry Tile Cleaning and Restoration Service in Nuneaton, Warwickshire

Painted Quarry Tiled Floor Restored in Whaley Bridge, Derbyshire

Posted on by

This was an unusual Quarry Tiled Floor that I was asked to renovate at a house in Whaley Bridge which is a small town in Derbyshire Peak district. The floor tiles were laid in a diamond pattern using alternating Black & Red quarry tiles. The house was more than 100 years old and recently changed hands. A large rug had previously occupied the middle of the floor and the tiles around the side has been painted over with black paint.

Old Black and Red Quarry Tiled Floor Before Cleaning Whaley Bridge

To restore the floor to a consistent appearance I could see the paint would need to be removed and then the whole floor given a deep clean and seal. Additionally, there was an old Fireplace at one end of the room decorated in antique Ceramic tiles that needed cleaning, the Tiles are very old but in good physical condition for their age.

Old Ceramic Tiled Fireplace Hearth Before Cleaning Whaley Bridge

Cleaning Old Black and Red Quarry Tiles

My first task was to remove the black paint and years of ground in dirty by treating the tiles with a poultice made from two Tile Doctor products namely Nano-Tech HBU Remover and Remove and Go. Working in sections the solution was applied to the tiles and left to soak in for a good twenty minutes before scrubbing with a rotary machine fitted with a black scrubbing pad running at slow speed.

The resulting soil was extracted using a wet vacuum and then the tiles rinsed with water, so I would see where more work was needed. Stubborn stains were then spot treated with the same process before moving onto the next section. The Ceramic tiles in the fireplace hearth was treated in the same way.

After removing all the dirt, stains and paint I gave the floor a final rinse to remove any trace of cleaning product and extracted as much moisture as possible using the wet vacuum. The floor would need to be dry before applying a sealer, so to allow the floor to fully dry off I left the floor for two days.

Sealing Original Quarry Hallway Tiles

On my return I checked the tiles first to ensure they were dry. All was good so I set about applying a couple of coats of Tile Doctor Colour Grow which is a colour enhancing impregnating sealer that occupies the pores in the clay. Additionally, Colour Grow is a breathable sealer which is important for these old floors that don’t have a damp proof course. There was no need to apply the sealer to the ceramic tiles in the hearth however as they won’t take a sealer due to the glaze.

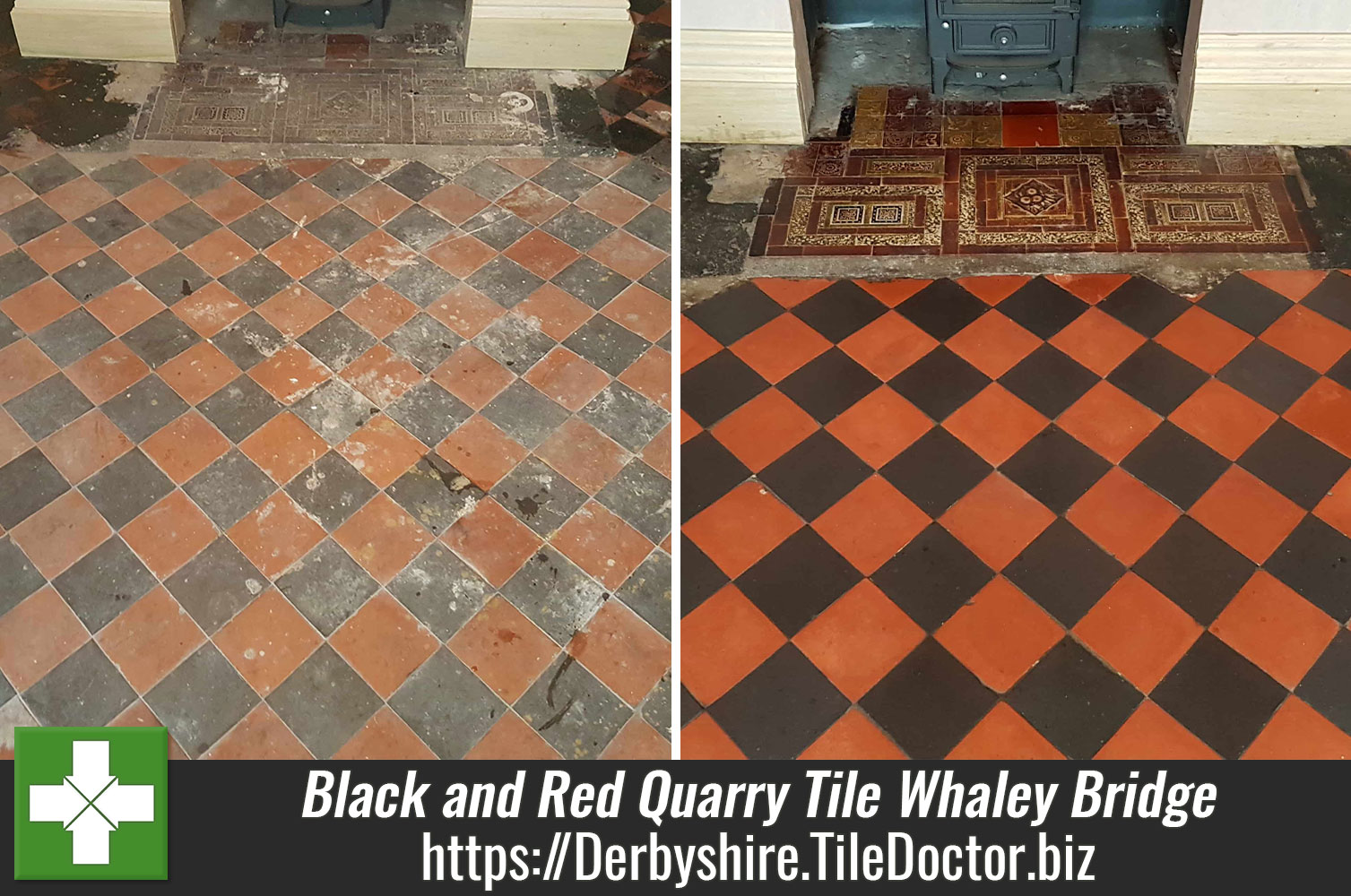

Old Black and Red Quarry Tiled Floor After Cleaning Whaley Bridge

Once completed the floor looked completely transformed and the client was more than happy. Work continues in other parts of the house and once they have finished decorating they have asked me to return to restore their beautiful old Victorian tiled hallway.

Old Ceramic Tiled Fireplace Hearth After Cleaning Whaley Bridge



Source: Quarry Tile Cleaning and Renovation Service in Derbyshire

Rebuiling a Damaged Quarry Tiled Floor in Croydon

Posted on by

There is perhaps nothing more irritating for a homeowner than to discover a leaking pipe. Even worse still is when that leak occurs underneath a natural stone floor!

This recent customer of mine, who lives in Croydon, had unfortunately discovered a leaking pipe underneath her Quarry tiled kitchen floor. The plumbers had dug a trench in the floor to replace the pipe and fix the problem. As you can see in the photos below, the original tiles were not replaced and the entire floor was generally left in a bit of a mess.

Quarry Tiled Floor Before Rebuild Croydon Quarry Tiled Floor Before Rebuild Croydon

The customer had been trying to find a professional company to restore the floor, but her insurance company would only agree to sending normal cleaning companies to the job. Given the reality of the situation, you won’t be surprised to know that these companies all politely refused!

The situation went unresolved for over six months before the customer finally decided to contact Tile Doctor to restore the floor.

Rebuilding and Cleaning a Quarry Tiled Floor

The restoration took place over the space of six days. Our first port of call was to replace the tiles that had been removed as part of the plumbing work. This wasn’t the easiest process as we had to level up the floor before the tiles could be replaced.

Making matters more complicated, the tiles were all hand-made, and it was a bit like completing a jigsaw to avoid lippage. Lippage – for those unfamiliar with the term – means when a floor is laid unevenly and it can make walking on it hazardous.

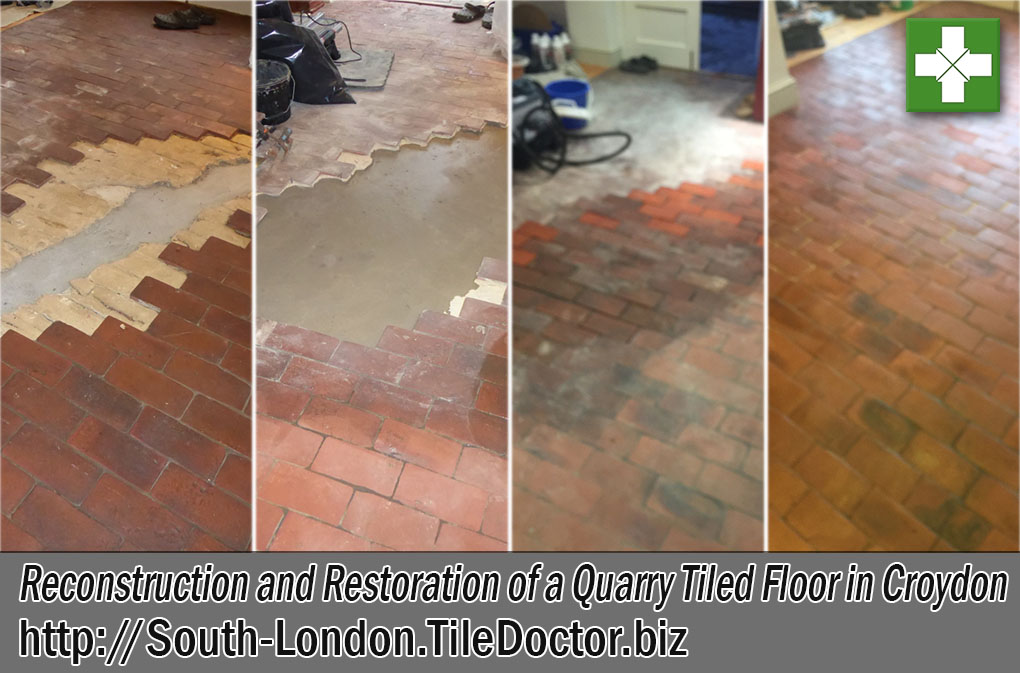

Quarry Tiled Floor During Rebuild Croydon Quarry Tiled Floor During Rebuild Croydon

Once the tiles were reinstalled, it was time to give the whole floor a deep clean. For this, we used Tile Doctor Oxy Gel, leaving it to dwell on the surface for around ten minutes, before scrubbing it into the stone in combination with hot water. Oxy Gel is a strong, alkaline-based cleaner which works effectively to break down dirt and grime, as well as old sealers and waxes.

The next stage of the restoration was to rinse the floor with fresh water, and then lay down Tile Doctor Acid Gel for 15 minutes. Acid Gel is a blend of phosphoric and hydrochloric acids in gel form which is used to neutralise any grout haze and efflorescence on the tiles.

Sealing a Quarry Tiled Floor

After completing the deep cleaning process, we rinsed the floor again with fresh water and then left it to dry for three days. Giving the floor enough time to dry was important, since any excess moisture would not have allowed us to complete the restoration by sealing the tiles.

After a few days, however, the floor was indeed thoroughly dried and could receive a fresh seal. We sealed the floor using five coats of Tile Doctor Seal and Go, a topical sealer which eliminates traditional two-step sealing methods. What this means is that it provides both a robust surface seal and a high-quality low sheen finish – in one product.

After six months of difficulty and disruption, the customer was very happy to have her Quarry floor completely restored in just six days. Check out the photos below to see the outcome.

Quarry Tiled Floor After Rebuild Croydon Quarry Tiled Floor After Rebuild Croydon



Source: Quarry Tile Cleaning and Sealing Service in Croydon, South-London

Removing Carpet Glue from Quarry Tiles in West Surrey

Posted on by

Dunsfold is a very small village in the borough of Waverley in West Surrey. It’s well known for the Dunsfold Aerodrome, an airfield that was built by the Canadian army during World War II. Hundreds of years ago, members of the English aristocracy held large estates of land in and around Dunsfold – and several historic cottages still exist in the area.

A customer of mine had recently bought one of these cottages and, during renovation work, had removed the downstairs carpets in three rooms to discover a Quarry tiled floor. Naturally, they were caked in many years’ worth of muck and carpet glue.

It would be a significant job to get the tiles in the three rooms back to looking their best – but it was a job I was more than willing to undertake. Classic Quarry tiles exude a certain rustic quality and charm – a welcome addition to many vintage properties, especially those located out in the countryside.

Quarry Tiled Floor Before Renovation at Dunsfold Cottage Quarry Tiled Floor Before Renovation at Dunsfold Cottage

Deep Cleaning a Quarry Tiled Floor

I started the restoration by soaking small areas of the floor in Tile Doctor Remove and Go. This product is excellent for removing floor coatings such as old sealers as well as shifting stubborn filth and loosening carpet adhesive deposits. After carefully scraping any excess adhesive off manually with a sharp blade, I ran my buffing machine across the floor and immediately the tiles cleaned up well.

Next, I used a 200-grit (Coarse) diamond-encrusted burnishing pad on the floor. This basically skims a layer off the tile surface, revealing the original colour of the stone that had previously been hidden underneath. A small amount of water was used as lubrication for this process. Quarry tiles are naturally very porous so after rinsing the soil off the floor I left them over the weekend to dry.

While the somewhat aggressive approach of burnishing is highly effective, it can leave the tiles looking a little washed out – and the colour slightly diminished. However, I assured the customer that the colour would return once the tiles had been sealed.

Sealing an Original Quarry Tiled Floor

While I was enjoying my weekend off, the customer fortunately found a few replacement Quarry tiles in his attic to fit around the fireplace as upstands where there were some tiles missing. So, on my return to the property my first task was to fit these replacements, before sweeping the floor clear of any debris.

To finish the restoration, I applied a couple of coats of Tile Doctor Colour Grow, an impregnating sealant which provides the matte, natural-look finish the customer wanted. This sealant penetrates into the pores of the tile, so it dries inside the stone not on the surface. It also intensifies the fantastic red shades in the Quarry.

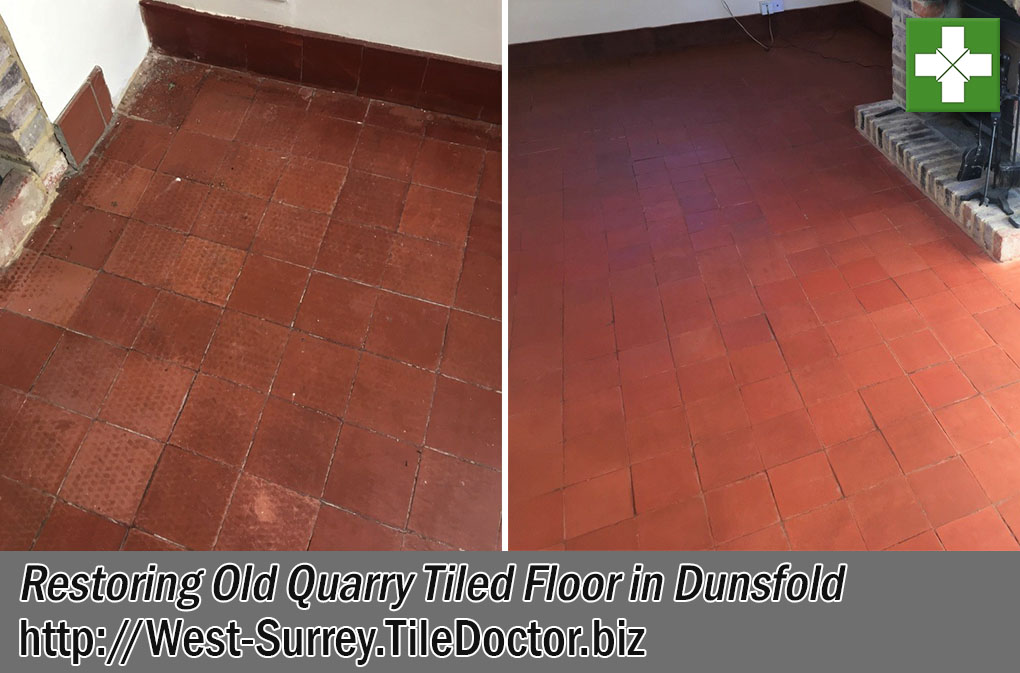

Quarry Tiled Floor After Renovation at Dunsfold Cottage

Around an hour after the coats of Colour Grow had been applied, the floor was dry and free to be walked on, and all the furniture could be returned. Much needed life and character had been restored to the Quarry tiled floor and the new property owner was very happy as a result.


Source: Quarry Tile Cleaning and Restoration Service in Dunsfold, West Surrey

Stripping Wax and Paint for Quarry Tiles in Cheltenham

Posted on by

It’s often quite surprising what condition we find some tiles in when were asked to come out and survey the floor. Case in point being this Quarry tiled kitchen floor I was asked to look at by a customer in Cheltenham, which as you may know is particularly famous for its racecourse and the top-secret GCHQ.

Upon arrival at the property, I found that the floor was not in great condition. For some reason, it had been painted over with red tile paint and then covered with a wax coating which was easily scratched. To Make the situation worse, there were around 20 tiles in the floor with holes in them that had simply been filled with concrete.

Quarry Tiled Floor Cheltenham Before Removing Paint Quarry Tiled Floor Cheltenham Before Removing Paint

Clearly, the tiles had not been maintained properly in the past but fortunately the current owner of the property who was keen to have them restored had called in Tile Doctor and after a demonstration clean I was booked to come back and correct the numerous issues.

Cleaning a Damaged Quarry Tiled Kitchen Floor

On the first day of the restoration, I started by applying a solution of Tile Doctor Remove and Go across the entire floor and leaving the product to dwell for around 30 minutes. Remove and Go is a powerful stripper designed to loosen paint splashes, adhesive stains and many types of urethane and wax coatings so that they can be easily removed.

After leaving the product to dwell, I could use a handheld scrapper to simply remove the wax coating and layer of paint on the floor. This process took about half a day; during the second half of the day, I spent my time removing the damaged tiles and replacing them with new Quarry tiles that had been sourced to match nicely with the existing floor.

Quarry Tiled Floor Cheltenham During

On the second day, any stubborn paint splashes remaining were re-treated and I subsequently deep cleaned the floor using a strong dilution of Tile Doctor Pro-Clean. This strong alkaline cleaning product was worked into the tiles using a 17-inch scrubbing pad fitted to a specialised rotary machine. The resultant soil was extracted off the floor using a wet vacuum and given a rinse with water to neutralise the floor. The wet vacuum was used again to remove the water and extract as much moisture from the tiles as possible to improve the drying time.

Sealing a Quarry Tiled Kitchen Floor

Once the deep clean had been completed, I left the floor dry for two days to allow sufficient time for it to dry thoroughly. Upon returning to the property, I ran a damp test to see if the tiles were dry enough to be sealed. To my surprise, the floor recorded only around 4% moisture even though the property is relatively old and is unlikely to have a damp proof membrane installed.

Nonetheless, this meant I could seal the floor. I did this by using a single coat of our impregnating, colour-intensifying sealer known as Tile Doctor Colour Grow, followed by three coats of Tile Doctor Seal and Go, a water based sealer which provides a high-quality satin finish.

Quarry Tiled Floor Cheltenham After Cleaning and Sealing Quarry Tiled Floor Cheltenham After Cleaning and Sealing

The deep clean, combined with the application of two different sealers, really helped to give these Quarry tiles a new lease of life. The customer was very happy indeed – in fact, had this been an exam, I’m certain I would’ve received top marks and it was certainly a major improvement on how they were before.


Source: Quarry Tile Cleaning and Renovation Service in Gloucestershire

Quarry Tiled Hallway Restoration in Surrey

Posted on by

As the West Surrey Tile Doctor I cover quite a large area including Haslemere which is a town on the South-Western edge of the county in the borough of Waverley. I was down there to visit a customer who had recently bought an old property there and during the renovations uncovered six foot of quarry tiles by the front door. There was a patch of concrete that also needed investigating.

Quarry Tiled Floor Before Cleaning Haslemere Quarry Tiled Floor Before Cleaning Haslemere

Cleaning Hallway Quarry Tiles

I began by carefully removing the layer of concrete with a scraper and a covering of Tile Doctor Acid-Gel hoping it would expose more quarry tiles underneath. Sadly, this wasn’t the case and all I exposed was an area of ruined quarry tiles and four buried bricks. These would have to be removed then filled to bring them to the same level as the remaining tile so I could lay new tiles their place. A couple of noisy hours later following drilling and violent chisel work I’d removed enough to lay flat tiles.

I spent the next hour cleaning and preparing the remaining good tiles. After years of being covered by carpet there was a fair amount of adhesive to remove. This was loosened with Tile Doctor Remove and Go and small abrasive hand-held Diamond blocks to get into the corners.

The Remove and Go was applied to the tiles, left to soak in for ten minutes and then worked into the tile and grout with a stiff brush. The then the soiled solution was rinsed off and extracted using a wet vacuum. Following this work the tiles looked clean but worn out and colourless which is not unusual for this stage of the process and would be resolved once a sealer had been applied.

Tiles were then cut to measure then fixed in place with a rapid adhesive in line with the originals. Once they had set they were grouted in with a grout that closely matched the original. The rest of the floor was inspected at this point and any holes filled with more grout until flat. The grout and tiles were left to dry which was a good opportunity for me to eat lunch.

Sealing Original Quarry Tiles

It was only a small area so later that afternoon the tile and grout and I was able to finish the restoration with the application of two coats of sealer. On this occasion I chose to use Tile Doctor Colour Grow which is an impregnating sealer that soaks into the pores of the clay Quarry tiles protecting them from within and also enhancing the red colours in the tile.

Quarry Tiled Floor Before Cleaning Haslemere

The result was a significant improvement and the customer was very happy, leaving the following testimonial on the Tile Doctor feedback system.

“Rupert was absolutely brilliant. Very friendly and professional, worked cleanly and totally rejuvenated our quarry tile entryway. Would definitely call him again and recommend to friends.”


Source: Quarry Tile Cleaning and Restoration Service in Surrey

Removing Glue from Quarry Tiles

Posted on by

This customer in Warninglid, near Cuckfield asked me to clean a Quarry tiled floor that had been hidden for years under carpet. The carpet had been thoroughly stuck down with glue and sticky gripper rods so the tiles were in quite a mess. Whilst I thought that most of the floor could be greatly improved I voiced my reservations about several patches of heavy glue and some blackened area where burning logs appeared to have rolled from the hearth onto the stone.

Old Quarry Tile Floor Warninglid Before Restoration Old Quarry Tile Floor Warninglid Before Restoration

Deep Cleaning Quarry Tiles

I spent several hours stripping and cleaning the floor using Tile Doctor Pro-Clean first with hand brush then buffer, but struggled to remove the glue around the edges which wouldn’t shift. The solution appeared to be using a hand scrapper and so after a full day of scrapping and rubbing the floor was clean and before I left I gave it a good rinse with water to remove any product. I left it to dry for a couple of days and then the day before I was meant to return to seal the tiles I got a call from the customer who was concerned that the glue marks were more apparent now the floor was dry. I was between jobs so I popped round to have a look and had to agree it seemed there was still evidence of glue on the floor. Something stronger was clearly needed so I spot cleaned with Tile Doctor Remove and Go which is a strong coatings remover that is safe to use on Tile and Stone. Whilst not removing the glue entirely it made a huge improvement and the customer was happy with the result. I washed the impacted areas and used a heat gun to get the tiles dry so I was still able to return the next day to seal them.

Sealing Quarry Tiles

I sealed the Quarry tiles with three coats of Tile Doctor Pro-Seal which adds a subtle finish to the floor and will provide the tiles with long lasting protection. Luckily the next day was quite warm and the room was well ventilated by several windows and a double door so the tiles dried quickly.

Old Quarry Tile Floor Warninglid After Restoration Old Quarry Tile Floor Warninglid After Restoration

As you can see from the photographs on this page, the floor was really transformed and needless to say the customer was very satisfied with the result.


Source: Tile, Stone and Grout Cleaning Service in Sussex

Stained Quarry Tiled Steps Revitalised

Posted on by

The photographs below are from a set of steps outside a house in the small West Lothian town of Kirkliston near Edinburgh airport and as you can see from the photograph the Quarry Tiled steps and Grout were looking tired and now in need of a good deep clean.

External Quarry Tile Steps Before Cleaning

Cleaning Quarry Tile and Grout

To get them clean we scrubbed in a strong solution of Tile Doctor Pro-Clean, it was a small area so this was done by hand using water to rinse away the soiled cleaning solution. The process was repeated until the dirt and grime had been removed and particular attention was applied to the grout using a stiff brush and plenty of elbow grease. Cleaning tiles outside does have its advantages as there is less preparation required but drying can take longer if it’s a cold day or shady spot.

Grout Colouring Quarry Tiles

Despite our best efforts to get the grout clean there was still evidence of staining so once it was dry the grout was coloured with 2 coats of grout colourant. The top layer of grout is actually porous so it will become ingrained with dirt over time that makes cleaning very difficult, the grout colourant product we use however forms an epoxy barrier over the grout which seals the grout and makes it easy to clean. Once complete and dry the steps were finished off with a wipe down using Tile Doctor Neutral Cleaner.

External Quarry Tile Steps After Cleaning



Source: Tile, Stone and Grout Cleaning and Sealing in Edinburgh

Cleaning Kitchen Quarry Tiles

Posted on by

This job was to strip and re-seal these Quarry tiles installed in a commercial kitchen which was undergoing refurbishment at a canteen in Rushden, Northamptonshire. The tile finish had dulled and there was a lot of staining to the grout.

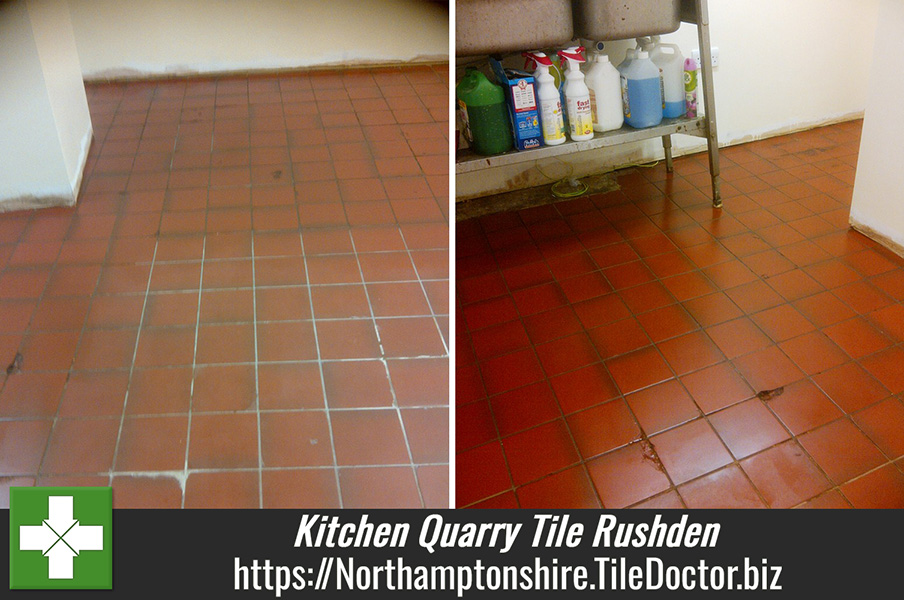

Quarry Tiles in Rushden before cleaning

Cleaning Quarry Tiles

As there was little in the way of kitchen units to protect I go straight down to stripping down the floor using a strong dilution of Tile Doctor Pro-Clean which is a multi-purpose cleaner/stripper that’s safe to use on stone, tile and grout. The solution was applied with a mop and left it to dwell on the floor for twenty minutes in order to give it chance to soak into the tile surface and get to work on the existing sealer and dirt. It was then worked into the floor using a rotary machine fitted with a black scrubbing pad and stiff hand brushes were used along the grout lines to get the grout clean. The resulting soiled solution was picked up with a wet and dry vacuum and the floor was then rinsed with clean water to neutralise the tile and stubborn areas re-treated. Once I was happy the floor was given a final rinse and then left to dry overnight ready for sealing the next day.

Sealing Quarry Tiles

After checking the tiles had dried I proceeded to seal the floor using four coats of Tile Doctor Seal and Go which will protect the floor from staining going forward and also adds a nice shine to the tile.

Quarry Tiles in Rushden After cleaning



Source: Commerical and Residential Quarry Tile floor cleaning services in Northamptonshire

Cleaning and Sealing Quarry Tiled Floor

Posted on by

This old quarry tiled floor was in the dining room of a Victorian terrace house in central Ipswich, Suffolk. The tiled floor had been covered by carpet for the previous 12 years and the owner wanted it restoring back to its original condition.

Quarry Tile Cleaning

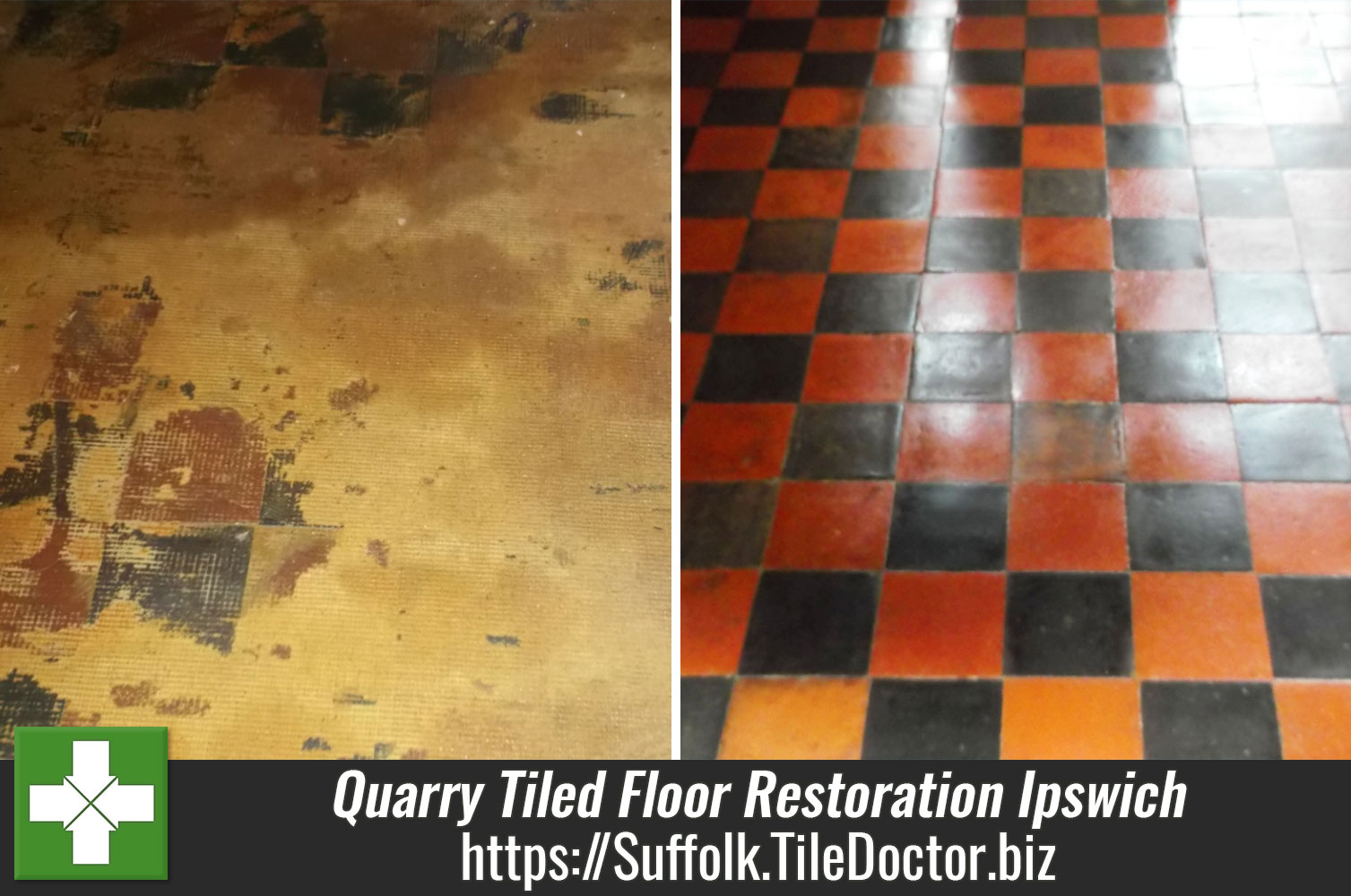

Quarry Tiled Floor Before Restoration Quarry Tiled Floor Before Restoration

The carpet backing had been glued to the quarry tiled floor and it took two days of hard graft using 2 litres of Remove & Go to remove the backing followed by 2 litres of Pro-Clean to clean up the tile. Once we had finished cleaning we washed down the floor to remove any remaining cleaning products and left it to dry overnight. We find a Wet and Dry Vacuum helps a lot when doing this; it’s a great tool for removing liquids from floors.

Quarry Tile Sealing

Quarry Tiled Floor After Restoration
We came back the next day and sealed the floor with five coats of Seal & Go, about 1 litre, which brought out the beauty in the floor, you can see the remarkable difference in the photographs.


Source: Quarry Tile Floor Restoration in Ipswich
